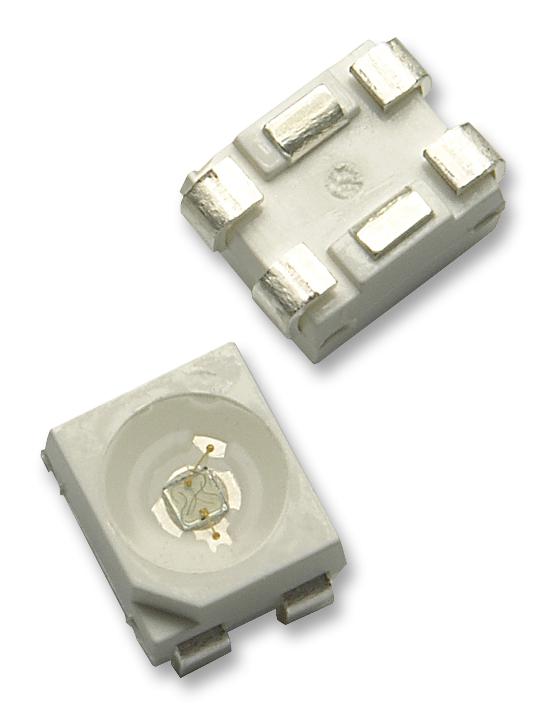

BROADCOM - ASMT-QBB3-NBD0E - High Brightness LED, ASMT-QBB3-Nxxxx, Blue, 460 nm, 120 °, 0.0115 lm, 150 mA
- Product Range: ASMT-QBB3-Nxxxx Series
- LED Colour: Blue
- Wavelength Typ: 460nm
- Viewing Angle: 120°
- Luminous Flux @ Test: 0.0115lm
- Forward Current If Max: 150mA
- Forward Current @ Test: 150mA
- Forward Voltage @ Test: 3.5V
- Luminous Intensity @ Test: 0.915mcd
- Power Dissipation Pd: 500mW
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- LED Mounting: SMD
- Lens Colour: Clear
- Lens Shape: Round with Flat Top
- No. of Pins: 4Pins
- Opto Case Style: PLCC-4
- Power @ Test: 0.5W
