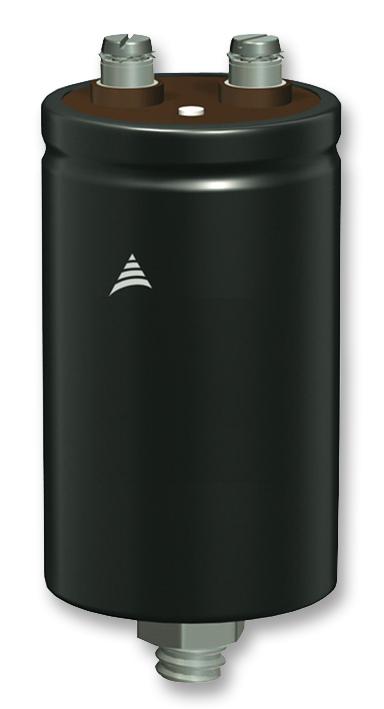

EPCOS - B41580A8100M000 - Electrolytic Capacitor, 0.1 F, 63 V, ± 20%, Screw, 3000 hours @ 105°C
- Capacitance: 0.1F
- Voltage Rating: 63V
- Product Range: B41580 Series
- Lifetime @ Temperature: 3000 hours @ 105°C
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Screw
- Diameter: 76.9mm
- Lead Spacing: 31.7mm
- Operating Temperature Min: -40°C
- Operating Temperature Max: 105°C
- Height: 143.2mm
- ESR: 0.0033ohm
- Automotive Qualification Standard: -
- SVHC: No SVHC (07-Jul-2017)
- AC Ripple Current @ 100Hz: 23A
- Capacitance Tolerance ±: ± 20%
- External Diameter: 76.9mm
- No. of Pins: 2Pins
- Operating Temperature Range: -40°C to +105°C
- Ripple Current Temperature: 105°C
