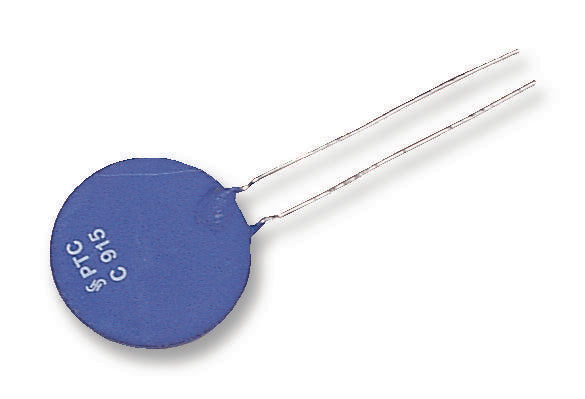

EPCOS - B59955C0120A070 - PTC Thermistor, 0.8 ohm, 30 V, -40 °C to 125 °C, Through Hole, Radial Leaded, B59955 Series
- Zero Power Resistance at 25°C: 0.8ohm
- Thermistor Mounting: Through Hole
- Product Range: B59955 Series
- Operating Voltage Max: 30V
- Applications: Over Current Protection, Short Circuit Protection
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Automotive Qualification Standard: AEC-Q200
- SVHC: No SVHC (07-Jul-2017)
- Body Diameter: 13.5mm
- Current Temperature: 120°C
- Lead Length: 35mm
- No. of Pins: 2Pins
- Operating Temperature Range: -40°C to +125°C
- Operating Voltage: 30V
- Reference Volts: 24V
- Resistance: 0.8ohm
- Resistance Temperature: 25°C
- Resistance Tolerance: ± 25%
- Resistance Tolerance +: 25%
- Resistance Tolerance -: 25%
- Thermistor Case Style: Radial Leaded
- Thermistor Tolerance: -25% to +25%
- Thermistor Type: PTC
- Tripping Current: 1.7A
- Tripping Temperature: 120°C
- Voltage Rating V DC: 30V
