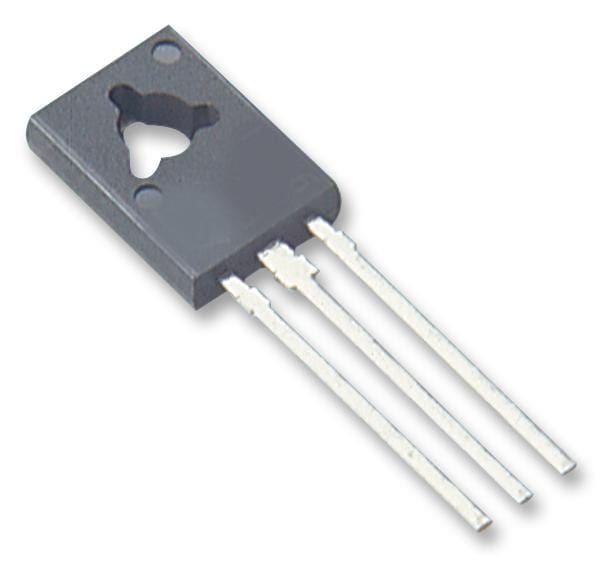

STMICROELECTRONICS - BD136 - Bipolar (BJT) Single Transistor, PNP, 45 V, 1 A, 1.25 W, TO-126, Through Hole
- Transistor Polarity: PNP
- Collector Emitter Voltage V(br)ceo: 45V
- Transition Frequency ft: -
- Power Dissipation Pd: 1.25W
- DC Collector Current: 1A
- DC Current Gain hFE: 40hFE
- Transistor Case Style: TO-126
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (17-Dec-2015)
- Collector Emitter Saturation Voltage Vce(on): -500mV
- Continuous Collector Current Ic Max: 1A
- Current Ic Continuous a Max: 1A
- Current Ic hFE: 150mA
- Device Marking: BD136
- Full Power Rating Temperature: 25°C
- Hfe Min: 40
- No. of Transistors: 1
- Power Dissipation Ptot Max: 12.5W
- Voltage Vcbo: 45V
