description

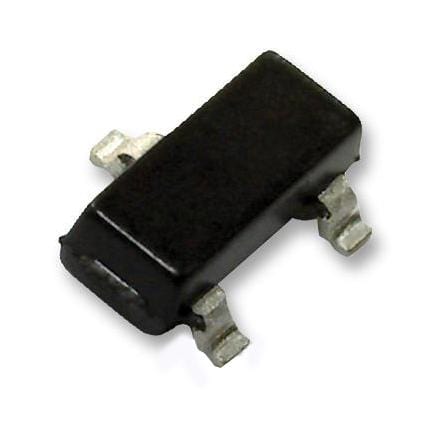

NEXPERIA - BF840,215 - Bipolar (BJT) Single Transistor, General Purpose, NPN, 40 V, 25 mA, 250 mW, SOT-23, Surface Mount
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 40V
- Transition Frequency ft: 380MHz
- Power Dissipation Pd: 250mW
- DC Collector Current: 25mA
- DC Current Gain hFE: 67hFE
- Transistor Case Style: SOT-23
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Continuous Collector Current Ic Max: 25mA
- Current Ic Continuous a Max: 25mA
- Current Ic hFE: 1mA
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Typ: 380MHz
- Hfe Min: 67
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Power Dissipation Ptot Max: 250mW
- SMD Marking: NC
- Voltage Vcbo: 40V
