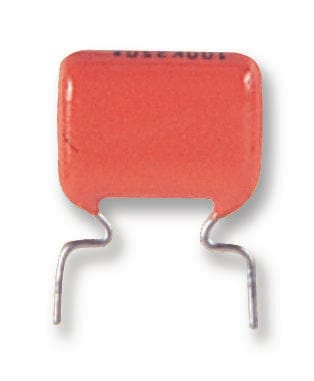

BFC236845684 Cap, 0.68µF, 250V, 10%, Pet Vishay

VISHAYUGS :BFC236845684 Code de commande:1215493

Prix:
Prix ​​promotionnel€2,50

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (94 unité)

Documents et téléchargements

description

VISHAY - BFC236845684 - General Purpose Film Capacitor, Metallized PET, Radial Box - 2 Pin, 0.68 µF, ± 10%, 160 V, 250 V

  • Capacitance: 0.68µF
  • Voltage Rating: 250V
  • Capacitor Dielectric Type: PET (Polyester)
  • Capacitance Tolerance: ± 10%
  • Product Range: MKT368 Series
  • Capacitor Case Style: -
  • Capacitor Terminals: Radial Leaded
  • Lead Spacing: 22.5mm
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Capacitance Tolerance ±: ± 10%
  • Capacitor Mounting: Through Hole
  • Climatic Category: 40/100/56
  • External Depth: 6.6mm
  • External Length / Height: 18.5mm
  • External Width: 26mm
  • Height: 18.5mm
  • Insulation Resistance: 30000Mohm
  • Lead Diameter: 0.8mm
  • Lead Length: 5mm
  • No. of Pins: 2Pins
  • Operating Temperature Range: -40°C to +85°C
  • Power Factor: 0.01
  • Tolerance +: 10%
  • Tolerance -: 10%
  • Voltage Rating V DC: 250V
  • Voltage Rating VAC: 160V
