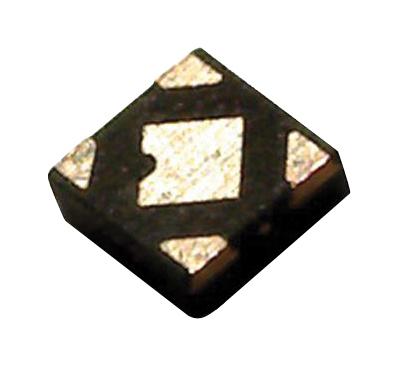

ROHM - BU33JA2MNVX-CTL - LDO Voltage Regulator - Fixed, 1.7V-6V input, 3.3Vnom/200 mA out, SSON-4
- Output Type: Fixed
- Input Voltage Min: 1.7V
- Input Voltage Max: 6V
- Fixed Output Voltage Nom.: 3.3V
- Adjustable Output Voltage Min: -
- Adjustable Output Voltage Max: -
- Output Current: 200mA
- Dropout Voltage Vdo: 220mV
- LDO Regulator Case Style: SSON
- No. of Pins: 4Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: 3.3V 200mA LDO Voltage Regulators
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: To Be Advised
- MSL: MSL 1 - Unlimited
- Output Voltage Nom.: 3.3V
