BYM-001T-P0.6 Crimp Pin, Sm Connector JST (Japan Solderless Terminals)

JST (JAPAN SOLDERLESS TERMINALS)UGS :BYM-001T-P0.6 Code de commande:3357661

Prix:
Prix ​​promotionnel€0,16

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (291445 unité)

Documents et téléchargements

description

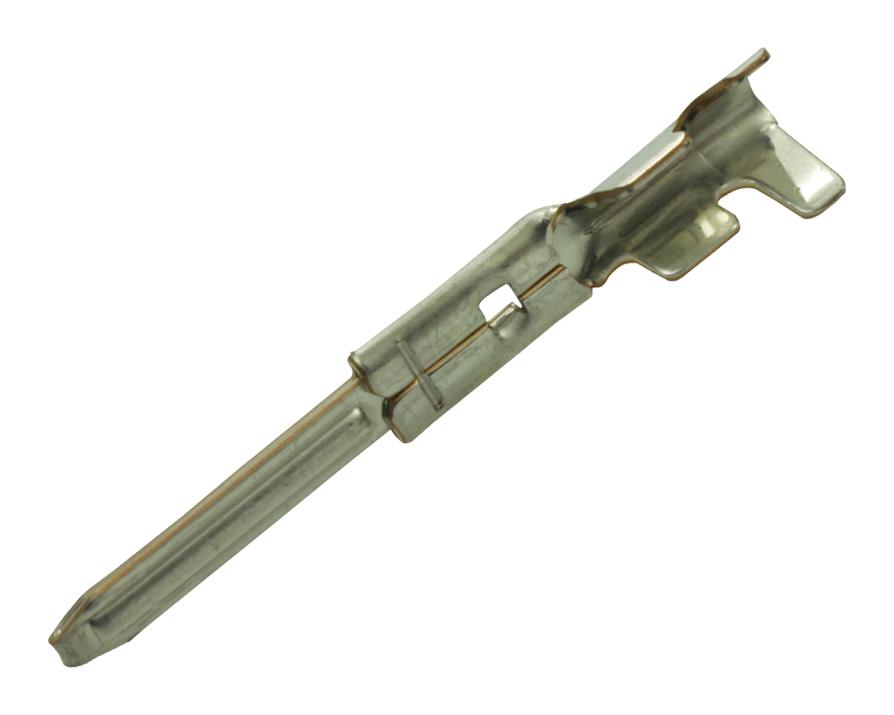

JST (JAPAN SOLDERLESS TERMINALS) - BYM-001T-P0.6 - Contact, Pin, Crimp, 22 AWG, Tin Plated Contacts, SM Connectors

  • Product Range: -
  • Contact Gender: Pin
  • Contact Termination Type: Crimp
  • Wire Size AWG Max: 22AWG
  • Contact Plating: Tin Plated Contacts
  • For Use With: SM Connectors
  • Wire Size AWG Min: 28AWG
  • Contact Material: Phosphor Bronze
  • SVHC: No SVHC (27-Jun-2018)
  • Cable Diameter Max: 1.8mm
  • Cable Diameter Min: 1.2mm
  • Colour: Tin
  • Contact Resistance: 10mohm
  • Contact Termination: Crimp
  • Current Rating: 3A
  • Gender: Plug
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -25°C
  • Voltage Rating V DC: 250V
  • Voltage Rating VAC: 250V
  • Wire Area Size Max: 0.33mm²
  • Wire Area Size Min: 0.08mm²
  • Wire Size: 22AWG
  • Wire Size (AWG): 28AWG to 22AWG
  • Withstand Voltage: 1.5kV
