C1353AHNAB Switch, Rocker, DPST, W/Cover, GRN, Ill Arcolectric (Bulgin Limited)

ARCOLECTRIC (BULGIN LIMITED)UGS :C1353AHNAB Code de commande:1758740

Prix:
Prix ​​promotionnel€11,00

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (965 unité)

Documents et téléchargements

description

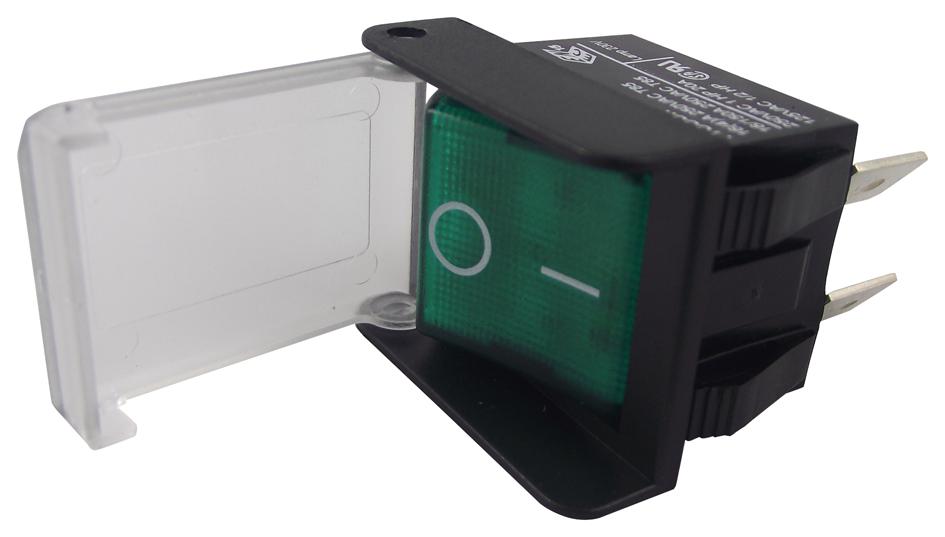

ARCOLECTRIC (BULGIN LIMITED) - C1353AHNAB - Rocker Switch, Off-On, DPST, Illuminated, Panel Mount, Green, 1350

  • Illumination: Illuminated
  • Contact Configuration: DPST
  • Switch Operation: Off-On
  • Actuator / Cap Colour: Green
  • Switch Mounting: Panel
  • Contact Current Max: 16A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: -
  • Product Range: 1350 Series
  • SVHC: No SVHC (27-Jun-2018)
  • Colour: Black
  • Contact Current AC Max: 16A
  • Contact Resistance: 10mohm
  • Contact Voltage AC Max: 250V
  • Illumination Colour: Green
  • Inrush Current: 150A
  • Insulation Resistance: 20Mohm
  • No. of Electrical Operations: 10000
  • No. of Mechanical Operations: 50000
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: 0°C
  • Panel Cutout Width: 22.1mm
  • Panel Cutout length: 30.1mm
  • Panel Thickness Max: 2.5mm
  • Panel Thickness Min: 0.75mm
