description

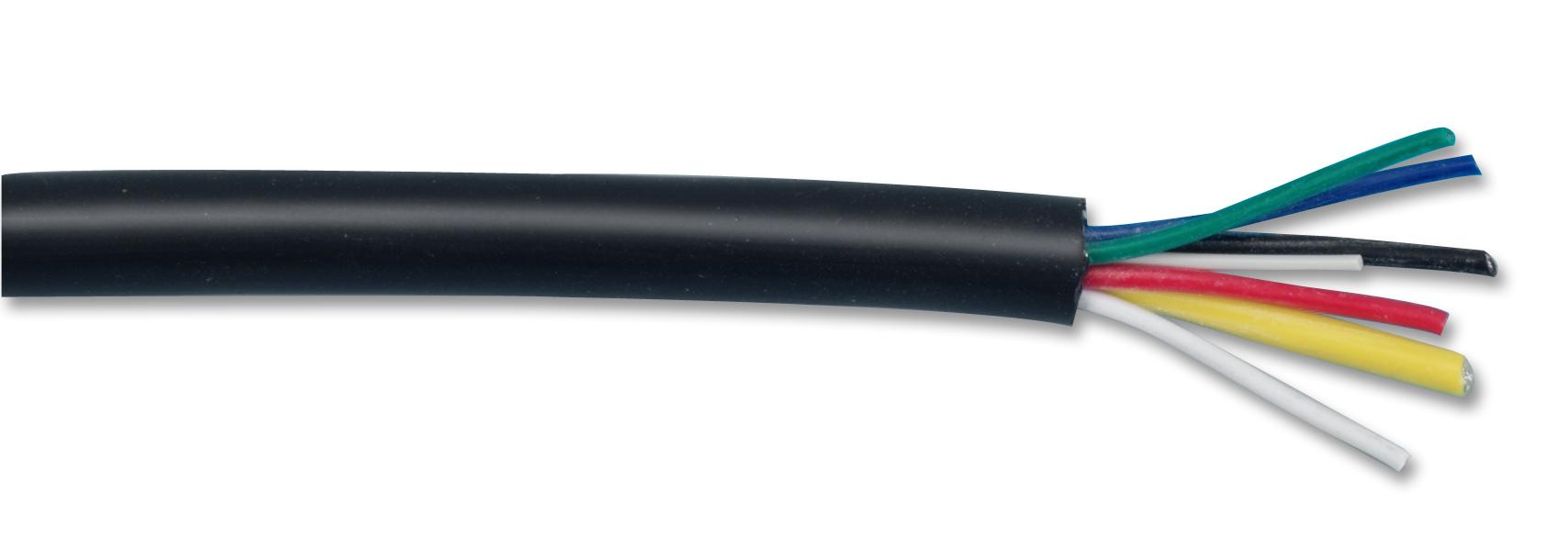

PRO POWER - CB02516 - Multicore Cable, CCTV, Unscreened, 6 Core, 328 ft, 100 m
- Cable Shielding: Unscreened
- No. of Cores: 6Core
- Wire Gauge: -
- Conductor Area CSA: -
- Reel Length (Imperial): 328ft
- Reel Length (Metric): 100m
- Jacket Colour: Black
- No. of Max Strands x Strand Size: -
- Conductor Material: Copper
- Jacket Material: PVC
- External Diameter: 7mm
- Voltage Rating: 200V
- Product Range: CB025 Series
- Complex Cable Make-Up: 3 / 7 / 0.2mm + 2 / 16 / 0.2mm + 1 / 16 / 0.2mm
- Conductor Make-up: 16 / 0.2mm + 7 / 0.2mm
- Outer Diameter: 7mm
- Screen Type Primary: Foil
- Secondary Insulation Colour: Black
- Secondary Insulation Material: PVC
