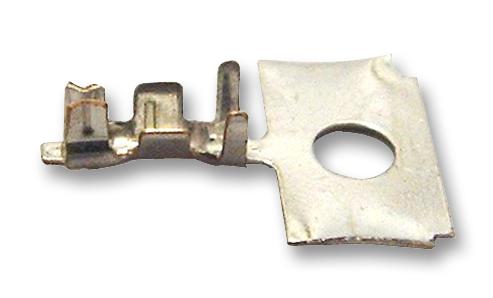

DF13-2630SCFA Crimp Socket, 26-30AWG Hirose(Hrs)

HIROSE(HRS)UGS :DF13-2630SCFA Code de commande:1324945

Prix:
Prix ​​promotionnel€0,16

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (33357 unité)

Documenten en downloads

description

HIROSE(HRS) - DF13-2630SCFA - Contact, DF13, Socket, Crimp, 26 AWG, Gold Plated Contacts, DF13 Series Connectors

  • Product Range: DF13 Series
  • Contact Gender: Socket
  • Contact Termination Type: Crimp
  • Wire Size AWG Max: 26AWG
  • Contact Plating: Gold Plated Contacts
  • For Use With: DF13 Series Connectors
  • Wire Size AWG Min: 30AWG
  • Contact Material: Phosphor Copper
  • SVHC: No SVHC (15-Jan-2019)
  • Body Plating: Gold
  • Cable Diameter Max: 1mm
  • Cable Diameter Min: 0.65mm
  • Contact Resistance: 30mohm
  • Contact Size: 26
  • Contact Termination: Crimp
  • Gender: Receptacle
  • Material: Phosphor Copper
  • No. of Mating Cycles: 30
  • Wire Area Size Max: 0.14mm²
  • Wire Area Size Min: 0.05mm²
  • Wire Size: 26AWG
  • Wire Size (AWG): 30AWG to 26AWG
