DMO063 SSR, 3a, 60VDC SENSATA/Crydom

SENSATA/CRYDOMUGS :DMO063 Code de commande:1200225

Prix:
Prix ​​promotionnel€41,24

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (114 unité)

Documents et téléchargements

description

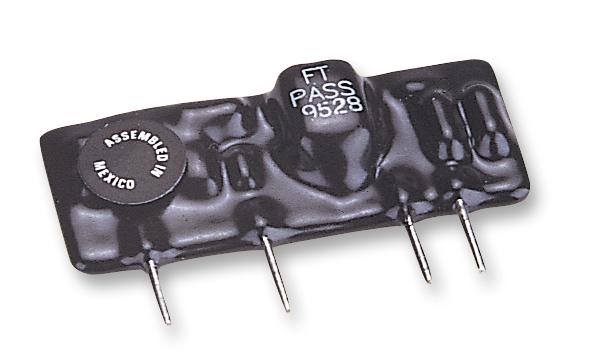

SENSATA/CRYDOM - DMO063 - Solid State Relay, DMO Series, Mini SIP, SPST-NO, 3 A, 60 VDC, PCB, Through Hole, DC Switch

  • Contact Configuration: SPST-NO
  • Load Current: 3A
  • Operating Voltage Max: 60VDC
  • Relay Mounting: PCB
  • Relay Terminals: Through Hole
  • Switching Mode: DC Switch
  • Operating Voltage Min: 0VDC
  • Control Voltage Min: 3VDC
  • Control Voltage Max: 10VDC
  • Product Range: DMO Series
  • SVHC: No SVHC (07-Jul-2017)
  • Blocking voltage: 600V
  • Control Current Typ: 15.2mA
  • Control Voltage DC Max: 10VDC
  • Control Voltage DC Min: 3VDC
  • Control Voltage Range: 3V DC to 10V DC
  • Control Voltage Type: DC
  • External Depth: 10.2mm
  • External Length / Height: 12.7mm
  • External Width: 24.9mm
  • Input Voltage: 3V DC to 10V DC
  • Isolation Voltage: 2.5kV
  • Load Current Max: 3A
  • Load Current Min: 0A
  • Load Current RMS Max: 3A
  • Load Voltage Range: 0V DC to 60V DC
  • Output Type: MOSFET
  • RMS Load Voltage Max: 60V
  • RMS Load Voltage Min: 0V
  • Rate of Voltage Change dv / dt: 200V/s
  • Surge Current: 12A
