DNR60US24 Power Supply, Switch Mode, 24V XP Power

XP POWERUGS :DNR60US24 Code de commande:1209251

Prix:
Prix ​​promotionnel€73,70

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (824 unité)

Documents et téléchargements

description

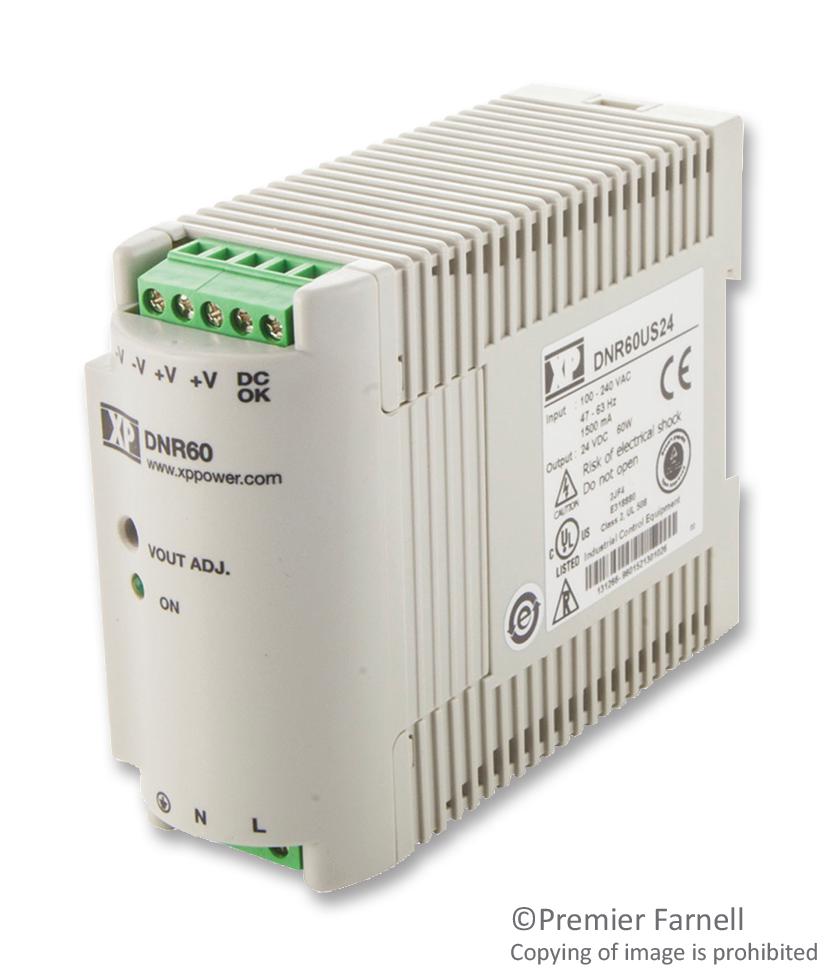

XP POWER - DNR60US24 - AC/DC DIN Rail Power Supply (PSU), ITE, 1 Output, 60 W, 24 VDC, 2.5 A

  • No. of Outputs: 1 Output
  • Output Power Max: 60W
  • Output Voltage - Output 1: 24VDC
  • Output Current - Output 1: 2.5A
  • Output Voltage - Output 2: -
  • Output Current - Output 2: -
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Output Voltage - Output 4: -
  • Current, Output 4: -
  • Input Voltage VAC: 85V AC to 264V AC
  • Power Supply Output Type: Fixed
  • Product Range: 5-960 DNR Series
  • SVHC: No SVHC (15-Jan-2018)
  • Applications: Industrial
  • Approval Bodies: CE, cUL, EN, UL
  • Efficiency: 89%
  • External Depth: 115mm
  • External Length / Height: 90mm
  • External Width: 40.5mm
  • Height: 90mm
  • Input Frequency: 63Hz
  • Input Voltage AC Max: 264VAC
  • Input Voltage AC Min: 85VAC
  • No. of Outputs: 1Outputs
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -40°C
  • Power Supply Type: DIN Rail
  • Switching Frequency: 90 KHz
  • Weight: 350g
