Documents et téléchargements
description
TDK-LAMBDA - DSP30-15 - AC/DC DIN Rail Power Supply (PSU), ITE, 1 Output, 30 W, 15 VDC, 2 A
- No. of Outputs: 1 Output
- Output Power Max: 30W
- Output Voltage - Output 1: 15VDC
- Output Current - Output 1: 2A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Input Voltage VAC: 90V AC to 264V AC
- Power Supply Output Type: Adjustable, Fixed
- Product Range: DSP Series
- SVHC: No SVHC (15-Jan-2018)
- Applications: Industrial
- Approval Bodies: CE, EN, UL
- Efficiency: 85%
- External Depth: 55.6mm
- External Length / Height: 91mm
- External Width: 53mm
- Height: 91mm
- Input Frequency: 63Hz
- Input Voltage AC Max: 264VAC
- Input Voltage AC Min: 90VAC
- Inrush Current: 50A
- Length: 55.6mm
- Line Regulation: 1%
- Load Regulation: 1%
- No. of Outputs: 1Outputs
- Operating Temperature Max: 71°C
- Operating Temperature Min: -25°C
- Output Current: 2A
- Output Ripple Voltage pk-pk: 50mV
- Output Voltage: 15V
- Output Voltage Max: 16.5V
- Output Voltage Min: 13.5V
- Output Voltage Nom.: 15V
- Power Rating: 30W
Frais de port prévus
Tu pourrais aussi aimer

TDK-LAMBDA
DSP10-5 PSU, DIN Rail, 5V, 1.5A, 7.5W TDK-Lambda
Prix promotionnel€41,20
En stock, 60 produits
TDK-LAMBDA
DSP100-12 PSU, DIN Rail, 12V, 6a, 72W TDK-Lambda
Prix promotionnel€99,02
En stock, 47 produits
TDK-LAMBDA
LS150-15 PSU, Enclosed, 15V, 10A, 150W TDK-Lambda
Prix promotionnel€56,94
En stock, 33 produits
TRACO POWER

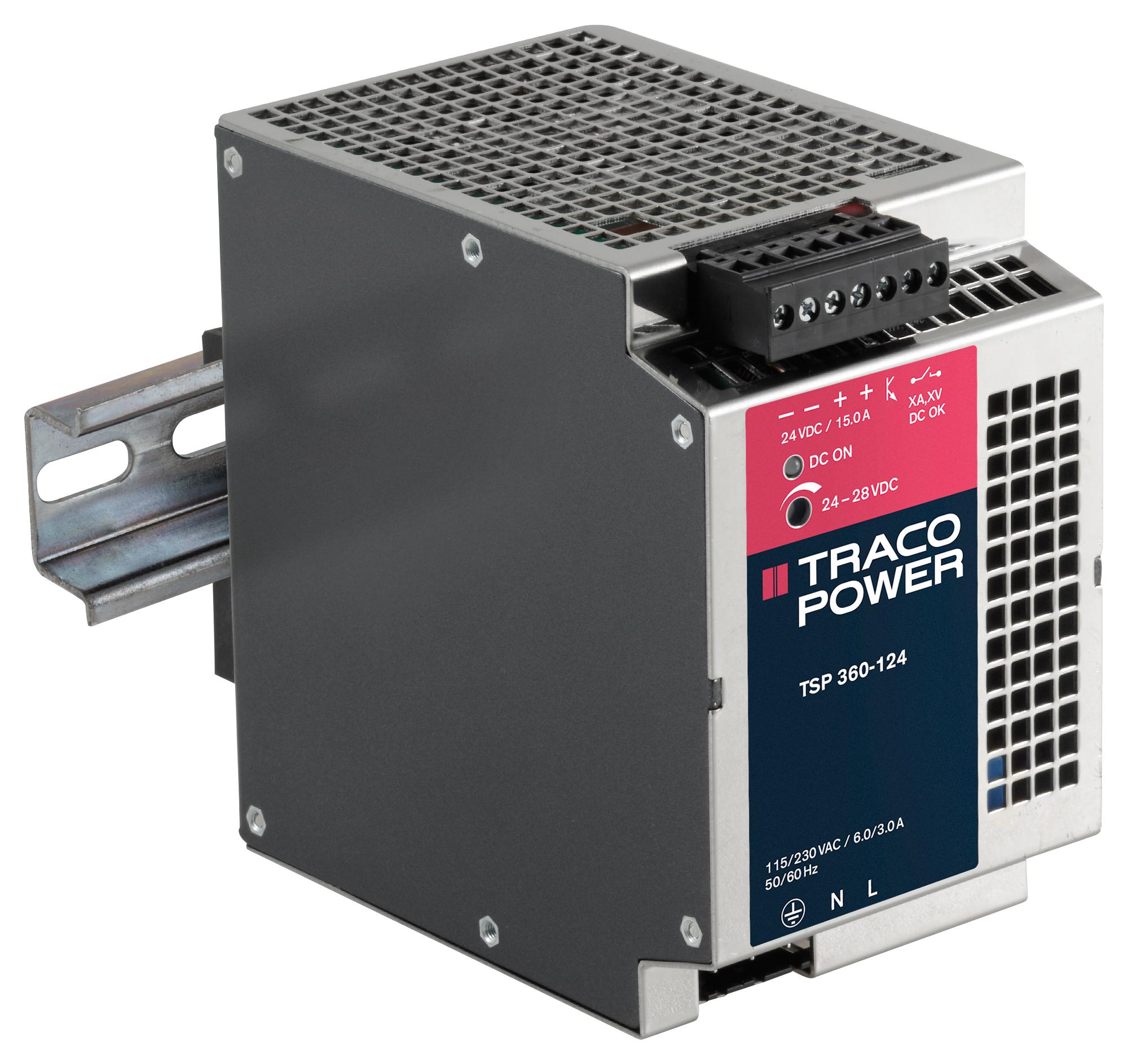

Tsp 360-124 PSU, Rail, 360W, 24V/15A TRACO Power
Prix promotionnel€425,51
En stock, 66 produits
TDK-LAMBDA
HWS-150A-5/A AC-DC Conv, 1 O/P, 5V, 30A, 150W TDK-Lambda
Prix promotionnel€200,68
Il ne reste que 6 produits
TRACO POWER
Tsp 600-148 PSU, Metal, 600W, 48V/12.5A TRACO Power
Prix promotionnel€692,25
Il ne reste que 8 produits
MEAN WELL

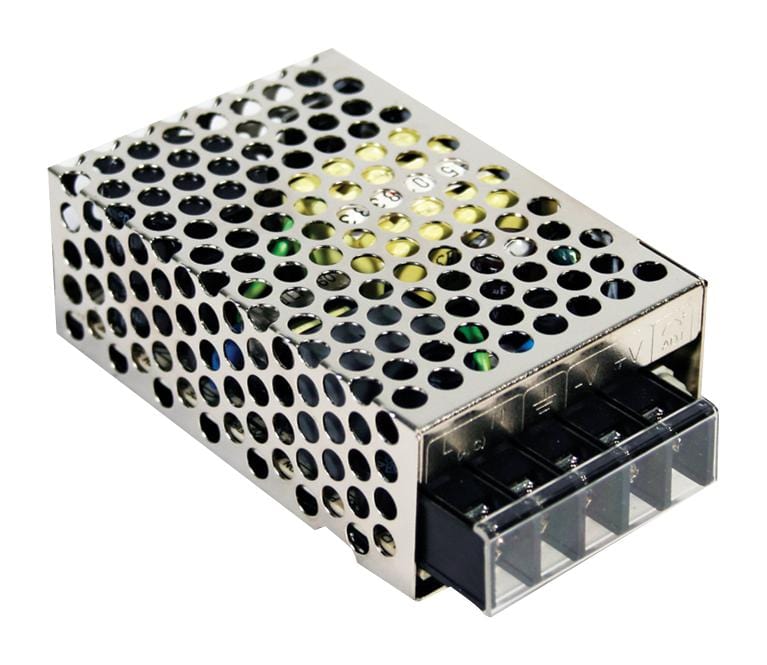

RS-25-15 POWER SUPPLY, AC-DC, 15V, 1.7A MEAN WELL
Prix promotionnel€19,18
En stock, 9 produits
TRACO POWER
Tsp 090-148 PSU, Metal, 96W, 48V/2A TRACO Power
Prix promotionnel€191,66
Il ne reste que 7 produits
TRACO POWER

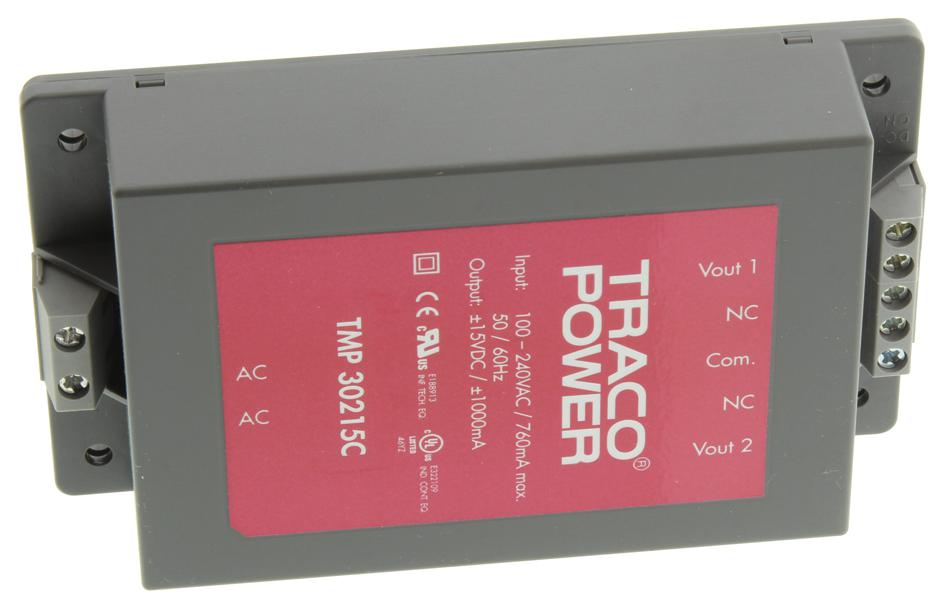

TMP 30215C Converter, AC/DC, ±15V, 1A/30W, Module TRACO Power
