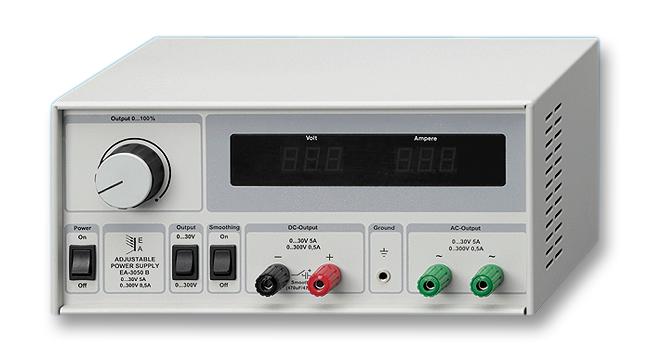

EA ELEKTRO-AUTOMATIK - EA-3050B - Bench Power Supply, Adjustable, 4 Output, 0 V, 300 V, 500 mA, 5 A
- Power Supply Output Type: Adjustable
- No. of Outputs: 4 Output
- Output Voltage Min: 0V
- Output Voltage Max: 300V
- Output Current Min: 500mA
- Output Current Max: 5A
- Power Rating: 150W
- Supply Voltage Min: 207VAC
- Supply Voltage Max: 253VAC
- Manufacturer Warranty: 2 Years
- Product Range: EA-3000 B
- Plug Type: EU, UK
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: CE, EMI, EN
- External Depth: 128mm
- External Length / Height: 195mm
- External Width: 280mm
- Height: 195mm
- Input Voltage: 207V AC to 253V AC
- Length: 145mm
- No. of Outputs: 4Outputs
- Operating Temperature Max: 40°C
- Operating Temperature Min: 0°C
- Output 2 Voltage Min: 0V
- Output 3 Voltage Max: 300V
- Output 3 Voltage Min: 0V
- Output Current: 5A
- Output Current - Output 2: 5A
- Output Current - Output 3: 500mA
- Output Voltage: 30V
- Output Voltage - Output 2: 30V
- Output Voltage - Output 3: 300V
- Power Supply Type: Bench
- Supply Frequency Max: 60Hz
- Supply Frequency Min: 50Hz
- Supply Voltage: 230V
- Supply Voltage Typ: 230V AC
- Weight: 9kg
- Width: 280mm
