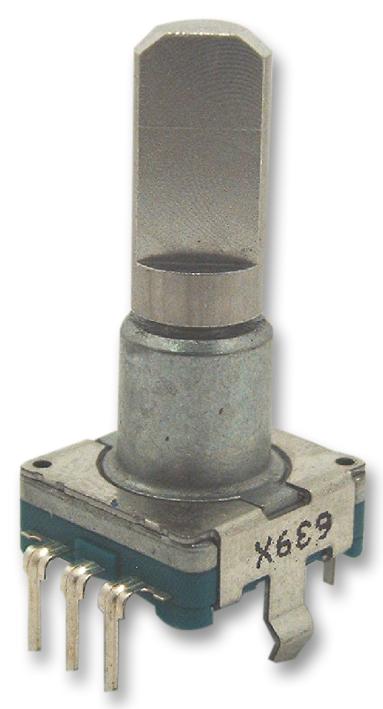

EC11E15244C0 Encoder, Vertical, 30 Det, 15PPR+SW Alps Alpine

ALPS ALPINEUGS :EC11E15244C0 Code de commande:1520806

Prix:
Prix ​​promotionnel€8,14

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (465 unité)

Documents et téléchargements

description

ALPS ALPINE - EC11E15244C0 - Rotary Encoder, Mechanical, Incremental, 15 PPR, 30 Detents, Vertical, With Push Switch

  • Supply Voltage Min: -
  • Supply Voltage Max: 5V
  • No. of Channels: 2Channels
  • Rotational Speed Max: -
  • Product Range: EC11 Series
  • SVHC: No SVHC (20-Jun-2016)
  • Connector Type: Pin
  • Encoder Resolution: 15
  • External Depth: 11.7mm
  • External Length / Height: 4.5mm
  • External Width: 12mm
  • No. of Detents: 30
  • No. of Pulses Per Revolution: 15
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -30°C
  • Operating Temperature Range: -30°C to +85°C
  • Pulse Output Count: 15
  • Rotation Mechanical Angle: 360°
  • Rotational Life Cycles: 15000
  • Shaft Diameter: 6mm
  • Shaft Length: 20mm
  • Supply Current: 10mA
  • Supply Voltage V DC: 5V
  • Torque: 10mN-m
  • Type: Vertical
