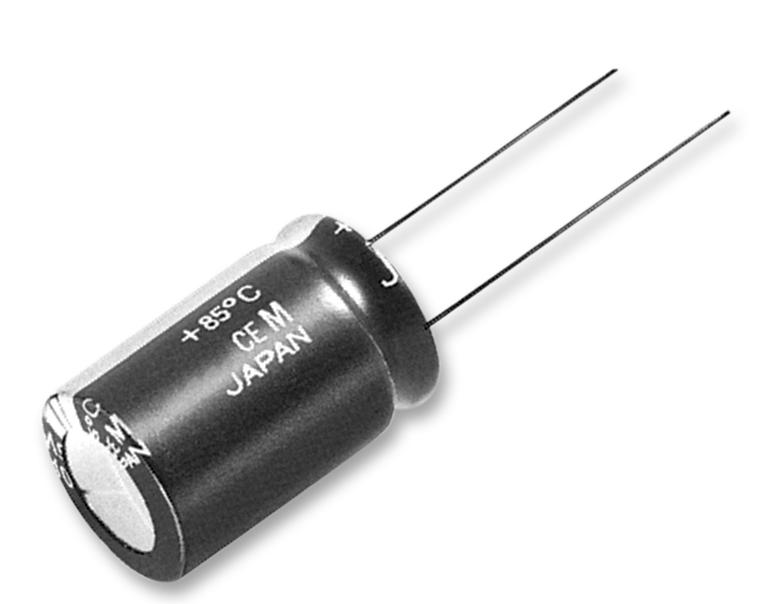

PANASONIC - ECA1HM471 - Electrolytic Capacitor, 470 µF, 50 V, ± 20%, Radial Leaded, 2000 hours @ 85°C, Polar
- Capacitance: 470µF
- Voltage Rating: 50V
- Product Range: M Series
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Radial Leaded
- Diameter: 10mm
- Lead Spacing: 5mm
- Height: 20mm
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Lifetime @ Temperature: 2000 hours @ 85°C
- ESR: -
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: ± 20%
- External Length / Height: 20mm
- Lead Diameter: 0.6mm
- Leakage Current: 235µA
- No. of Pins: 2Pins
- Operating Temperature Range: -40°C to +85°C
- Operating life Time: 2000h
- Ripple Current AC: 650mA
- Ripple Current Frequency: 120Hz
- Ripple Current Temperature: 85°C
- Tolerance +: 20%
- Tolerance -: 20%
- Voltage Rating V DC: 50V
