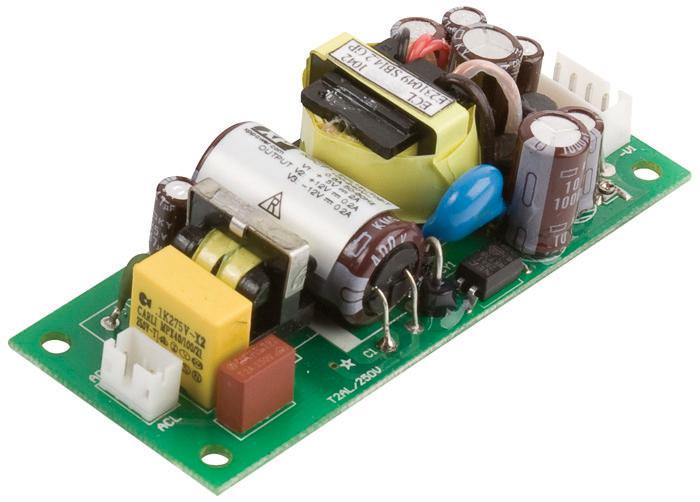

XP POWER - ECL05US03-T - AC/DC Open Frame Power Supply (PSU), ITE, 1 Output, 4.3 W, 85V AC to 264V AC, Adjustable, Fixed
- No. of Outputs: 1 Output
- Power Rating (Covection Cooling): 4.3W
- Power Rating (Forced Cooling): -
- Input Voltage VAC: 85V AC to 264V AC
- Power Supply Output Type: Adjustable, Fixed
- Output Voltage - Output 1: 3.3V
- Output Current - Output 1: 1.3A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Product Range: ECL Series
- SVHC: No SVHC (15-Jan-2018)
- Applications: General Purpose
- Efficiency: 72%
- Height: 18.47mm
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 85V
- Input Voltage DC Max: 370VDC
- Input Voltage DC Min: 120VDC
- Length: 25.4mm
- No. of Outputs: 1Outputs
- Output Current Max: 1.3A
- Output Power Max: 4.3W
- Peak Output Current: 1.69A
- Power Rating: 4.3W
- Supply Voltage Typ: 110V AC, 230V AC
- Width: 66.04mm
