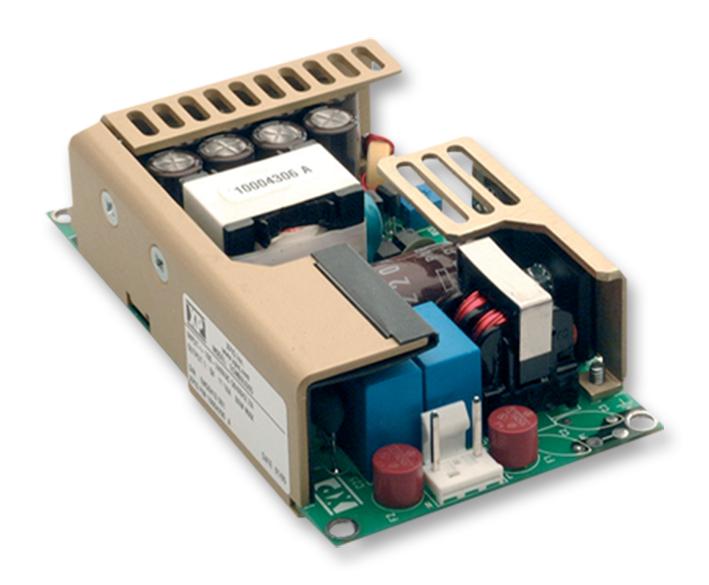

XP POWER - ECM100US05 - AC/DC Open Frame Power Supply (PSU), ITE & Medical, 1 Output, 100W @ 5CFM, 75 W
- No. of Outputs: 1 Output
- Power Rating (Covection Cooling): 75W
- Power Rating (Forced Cooling): 100W @ 5CFM
- Input Voltage VAC: 90V AC to 264V AC
- Power Supply Output Type: Adjustable, Fixed
- Output Voltage - Output 1: 5V
- Output Current - Output 1: 20A
- Output Voltage - Output 2: -
- Output Current - Output 2: 20A
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Product Range: ECM Series
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: cUL, EN, IEC, UL
- Approvals / Standards: CSA 22.2 No. 60601, EN 60601, ES 60601
- Efficiency: 85%
- External Depth: 114.3mm
- External Length / Height: 30.5mm
- External Width: 63.5mm
- Frequency Max: 63Hz
- Frequency Min: 47Hz
- Height: 30.5mm
- Input Frequency: 63Hz
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 90V
- Input Voltage DC Max: 370VDC
- Input Voltage DC Min: 120VDC
- Length: 114.3mm
- Line Regulation: 0.5%
- Load Regulation: 1%
- No. of Outputs: 1Outputs
- Operating Temperature Max: 80°C
- Output Power: 100W
