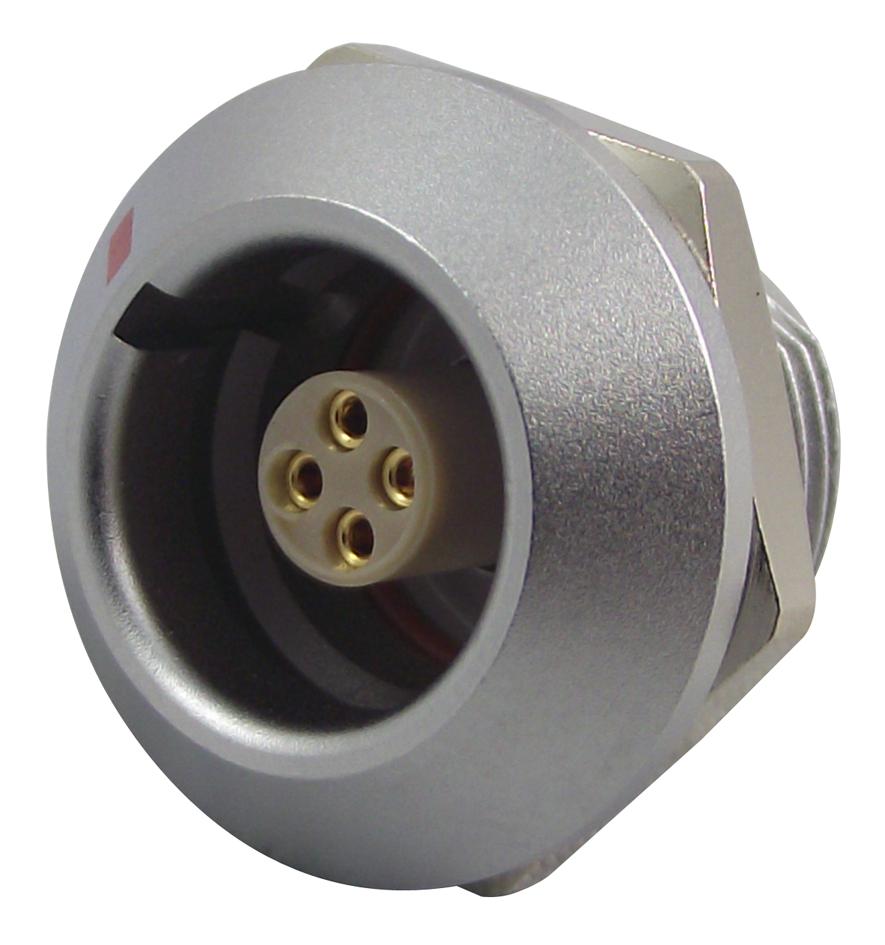

LEMO - EGG.0K.304.CLL - Circular Connector, 0K Series, Panel Mount Receptacle, 4 Contacts, Solder Socket, Push-Pull
- Product Range: 0K Series
- Circular Connector Shell Style: Panel Mount Receptacle
- No. of Contacts: 4Contacts
- Circular Contact Type: Solder Socket
- Coupling Style: Push-Pull
- Connector Body Material: Brass Body
- Connector Body Plating: Chrome
- Contact Material: Beryllium Copper
- Contact Plating: Gold
- SVHC: No SVHC (07-Jul-2017)
- Body Plating: Chrome
- Connector Mounting: Panel Mount
- Connector Type: Circular Industrial
- Contact Gender: Socket
- Contact Plating: Gold Plated Contacts
- Contact Resistance: 4.1mohm
- Contact Resistance Max: 4.8mohm
- Contact Termination: Solder
- Contact Termination Type: Solder
- Current Rating: 7A
- Gender: Receptacle
- IP / NEMA Rating: IP66
- No. of Mating Cycles: 5000
- Operating Temperature Max: 80°C
- Operating Temperature Min: -20°C
- Test Voltage Contact / Contact: 850V
