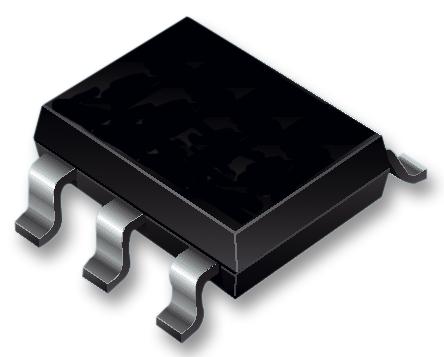

FDC3601N MOSFET, Dual, N, SMD, SSOT-6 ONSEMI

ONSEMIUGS :FDC3601N Code de commande:1471035

Prix:
Prix ​​promotionnel€1,48

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (52839 unité)

Documents et téléchargements

description

ONSEMI - FDC3601N - Dual MOSFET, N Channel, 100 V, 1 A, 0.5 ohm, SuperSOT, Surface Mount

  • Transistor Polarity: Dual N Channel
  • Continuous Drain Current Id: 1A
  • Drain Source Voltage Vds: 100V
  • On Resistance Rds(on): 0.5ohm
  • Rds(on) Test Voltage Vgs: 10V
  • Threshold Voltage Vgs: 2.6V
  • Power Dissipation Pd: 960mW
  • Transistor Case Style: SuperSOT
  • No. of Pins: 6Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (27-Jun-2018)
  • Continuous Drain Current Id, N Channel: 1A
  • Current Id Max: 1A
  • Drain Source Voltage Vds, N Channel: 100V
  • Module Configuration: Dual
  • On Resistance Rds(on), N Channel: 0.37ohm
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Termination Type: Surface Mount Device
  • Voltage Vds Typ: 100V
  • Voltage Vgs Max: 2.6V
  • Voltage Vgs Rds on Measurement: 10V
