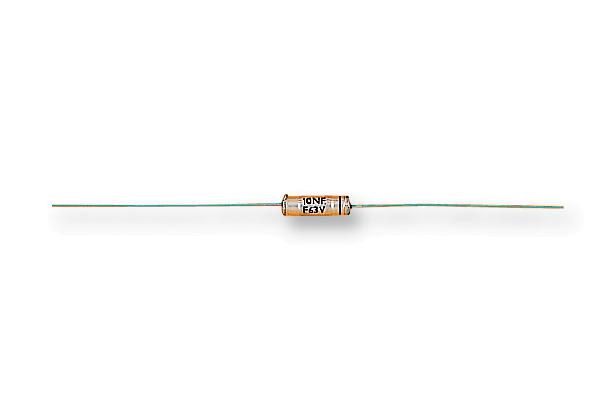

LCR COMPONENTS - FSCEX 15000PF 1%63V - General Purpose Film Capacitor, Film / Foil PS, Axial Leaded, 0.015 µF, ± 1%, 40 V, 63 V
- Capacitance: 15000pF
- Voltage Rating: 63V
- Capacitor Dielectric Type: PS (Polystyrene)
- Capacitance Tolerance: ± 1%
- Product Range: FSC/EX Series
- Capacitor Case Style: -
- Capacitor Terminals: Axial Leaded
- Lead Spacing: -
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Body Diameter: 7mm
- Capacitance Tolerance ±: ± 1%
- Capacitor Application: Audio
- Capacitor Mounting: Through Hole
- External Length / Height: 17mm
- Insulation Resistance: 10000Mohm
- Lead Diameter: 0.8mm
- No. of Pins: 2Pins
- Operating Temperature Range: -40°C to +85°C
- Power Factor: 0.0005
- Power Factor Frequency: 1kHz
- Temperature Coeff. +: 110ppm/°C
- Temperature Coeff. -: 50ppm/°C
- Temperature Coefficient: -50ppm/°C to +110ppm/°C
- Tolerance +: 1%
- Tolerance -: 1%
- Voltage Rating V DC: 63V
- Voltage Rating VAC: 25V
