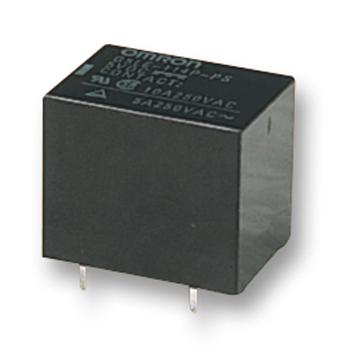

OMRON - G5LE-14 DC24 - General Purpose Relay, G5LE Series, Power, Non Latching, SPDT, 24 VDC, 10 A
- Contact Configuration: SPDT
- Coil Voltage: 24VDC
- Contact Current: 10A
- Product Range: G5LE Series
- Relay Mounting: Through Hole
- Coil Type: Non Latching
- Contact Voltage VAC: 250VAC
- Relay Terminals: Solder
- Contact Voltage VDC: 30VDC
- Contact Material: Silver Tin Oxide
- Coil Resistance: 1.44kohm
- Approval Bodies: CSA, VDE
- Approval Category: UL Recognised
- Approvals & Standards: CSA, IEC, UL, VDE
- Coil Current: 16.7mA
- Coil Operating Lower Percent Limit: 75%
- Coil Operating Upper Percent Limit: 130%
- Coil Voltage VDC Nom: 24V
- Contact Current AC Max: 10A
- Contact Current DC Max: 8A
- Contact Current Max: 10A
- Contact Voltage AC Max: 120V
- Contact Voltage AC Nom: 120V
- Contact Voltage DC Max: 30V
- Contact Voltage DC Nom: 30V
- Current Rating: 79.4mA
- DC Coil Power: 400mW
- External Depth: 16.5mm
- External Height: 19mm
- External Length / Height: 19mm
- External Width: 22.5mm
- No. of Pins: 5Pins
- Nom Operating Power: 400mW
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Relay Type: Power
