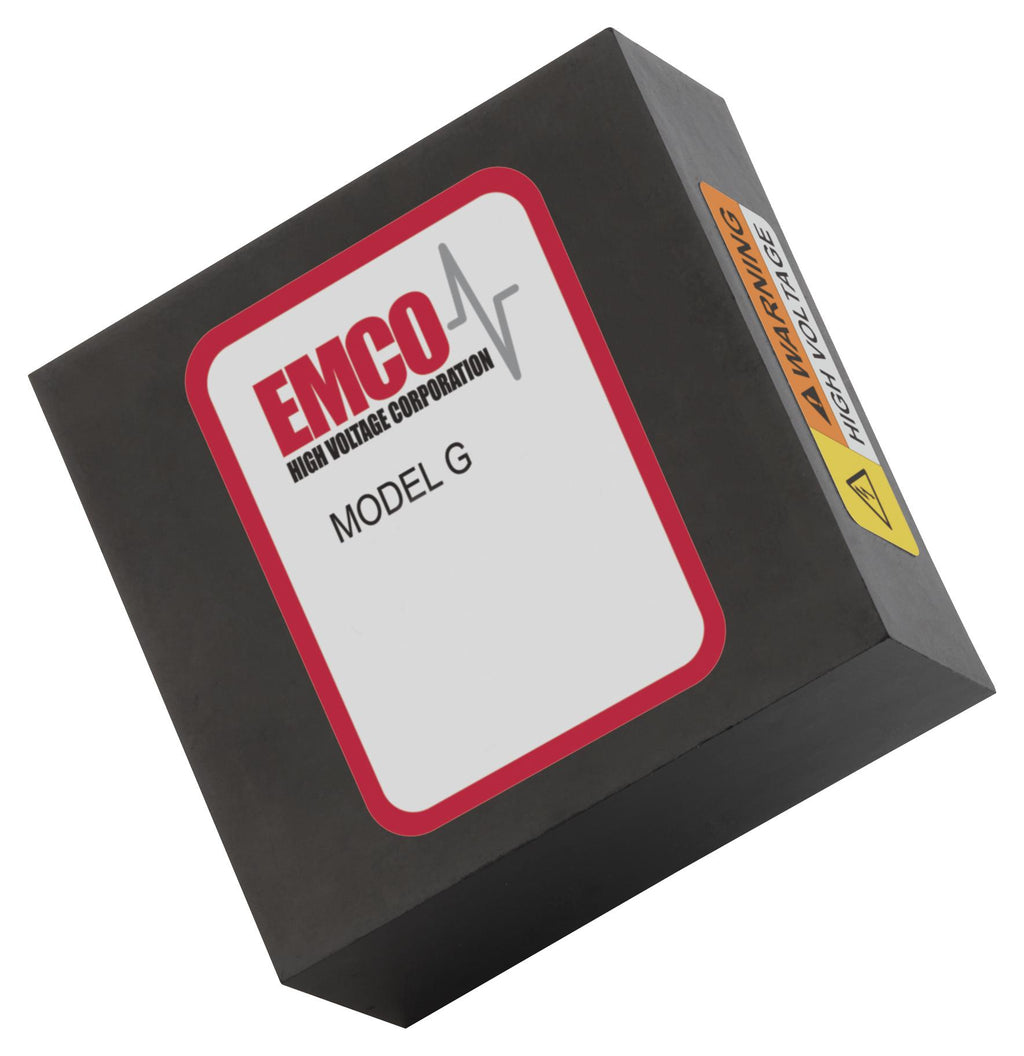

XP POWER - G60CT - High Voltage DC/DC Converter, Proportional, Dual Output, Fixed, Adjustable, 1.5 W, 250 µA
- No. of Outputs: 2 Output
- Output Power Max: 1.5W
- Output Voltage - Output 1: 3kV
- Output Current - Output 1: 250µA
- Output Voltage - Output 2: -3kV
- Output Current - Output 2: 250µA
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: G Series
- Input Voltage DC Min: 700mV
- Input Voltage DC Max: 12V
- DC / DC Converter Output Type: Fixed, Adjustable
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Through Hole
- Width: 38.1mm
- Height: 16mm
- Depth: 38.1mm
- SVHC: No SVHC (15-Jan-2018)
