G6A-274P-ST-US DC5 Relay, Signal, DPDT, 30Vdc, 2A Omron

OMRONUGS :G6A-274P-ST-US DC5 Code de commande:2068203

Prix:
Prix ​​promotionnel€10,08

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (338 unité)

Documents et téléchargements

description

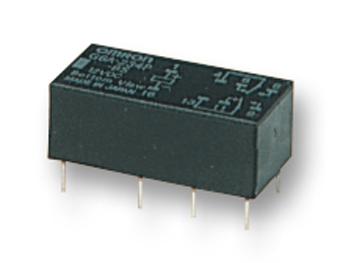

OMRON - G6A-274P-ST-US DC5 - Signal Relay, 5 VDC, DPDT, 2 A, G6A, Through Hole, Non Latching

  • Coil Voltage: 5VDC
  • Contact Configuration: DPDT
  • Contact Current: 2A
  • Product Range: G6A Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Relay Terminals: Solder
  • Contact Voltage VAC: -
  • Contact Voltage VDC: 30V
  • Contact Material: Silver
  • Coil Resistance: 125ohm
  • Approvals & Standards: CSA, UL
  • Coil Current: 40mA
  • Coil Power Continuous: 200mW
  • Coil Voltage VDC Nom: 5V
  • Contact Current Max: 2A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 220V
  • External Depth: 20.2mm
  • External Height: 8.4mm
  • External Width: 20.2mm
