GDM3009.Grey Plug, Free, 3+E Way Hirschmann

HIRSCHMANNUGS :GDM3009.GREY Code de commande:1215301

Prix:
Prix ​​promotionnel€5,26

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (289 unité)

Documents et téléchargements

description

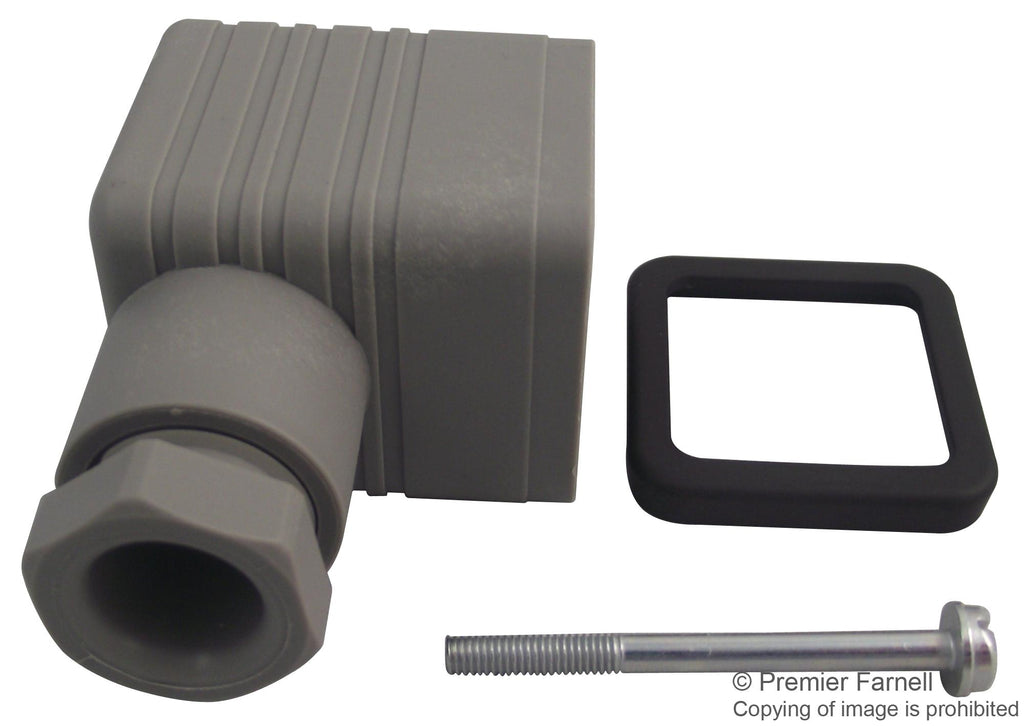

HIRSCHMANN - GDM3009.GREY - Rectangular Power Connector, 3+E, 3 Contacts, Cable Mount, Screw, Receptacle

  • No. of Contacts: 3Contacts
  • Product Range: -
  • Connector Mounting: Cable Mount
  • Contact Termination Type: Screw
  • Pitch Spacing: -
  • Gender: Receptacle
  • Contact Gender: Socket
  • Contact Material: Brass
  • Contact Plating: Tin Plated Contacts
  • Connector Shell Size: -
  • No. of Rows: -
  • SVHC: Lead (27-Jun-2018)
  • Approval Bodies: CSA, UL
  • Body Plating: Tin
  • Cable Diameter Max: 7mm
  • Cable Diameter Min: 4.5mm
  • Colour: Grey
  • Connector Type: Rectangular Power
  • Contact Resistance: 4mohm
  • Contact Termination: Screw
  • Current Rating: 16A
  • External Depth: 34mm
  • External Length / Height: 50mm
  • IP / NEMA Rating: IP65
  • Material: Polyamide
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -40°C
  • Standard: DIN EN 175 301-803-A
  • Termination Method: Screw
  • Thread Type: PG9
  • Voltage Rating V DC: 250V
  • Voltage Rating VAC: 250V
  • Working Voltage: 250V
