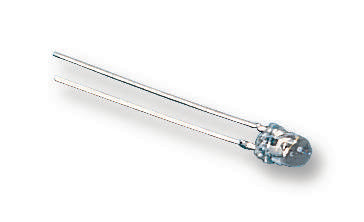

BROADCOM - HLMP-KB45-A0000 - LED, Blue, Through Hole, T-1 (3mm), 20 mA, 3.2 V, 470 nm
- LED Colour: Blue
- LED Mounting: Through Hole
- LED Case Size: T-1 (3mm)
- Forward Current If: 20mA
- Forward Voltage: 3.2V
- Wavelength Typ: 470nm
- Luminous Intensity: 30mcd
- Viewing Angle: 40°
- Lens Shape: Round
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Bulb Size: T-1 (3mm)
- Current If Luminous Intensity: 20mA
- Dominant Wavelength: 462nm
- External Diameter: 3.18mm
- External Length / Height: 4.7mm
- Forward Current If Max: 20mA
- Forward Voltage VF Max: 4V
- Input Voltage Max: 5V
- Input Voltage Min: 4V
- LED / Lamp Size: 3mm / T-1
- LED Type: Standard
- Lead Cross-section Depth: 0.45mm
- Lead Cross-section Width: 0.45mm
- Lead Length: 23mm
- Lead Spacing: 2.54mm
- Luminous Intensity @ If Min: 25mcd
- Luminous Intensity Typ: 45mcd
- No. of Pins: 2Pins
- Operating Temperature Max: 80°C
- Operating Temperature Min: -20°C
- Operating Temperature Range: -20°C to +80°C
- PIV Max: 5V
- Peak Wavelength: 426nm
