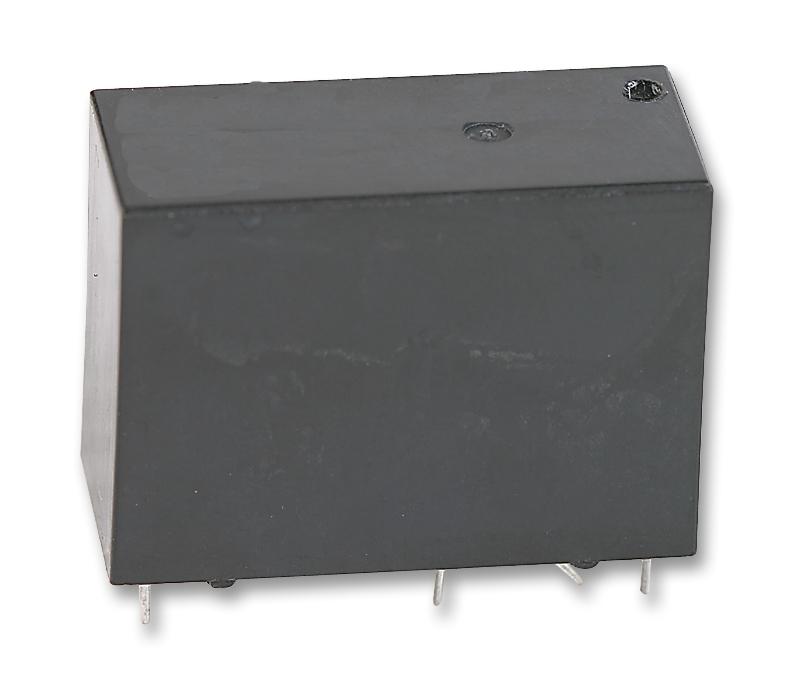

HRM1-S DC24V Relay, DPDT, 250VAC, 24Vdc, 5A multicomp Pro

MULTICOMP PROUGS :HRM1-S DC24V Code de commande:9479961

Prix:
Prix ​​promotionnel€4,58

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (988 unité)

Documents et téléchargements

description

MULTICOMP PRO - HRM1-S DC24V - General Purpose Relay, HRM1 Series, Power, DPDT, 24 VDC, 5 A

  • Contact Configuration: DPDT
  • Coil Voltage: 24VDC
  • Contact Current: 5A
  • Product Range: HRM1 Series
  • Relay Mounting: Through Hole
  • Coil Type: -
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 24VDC
  • Contact Material: Silver Alloy
  • Coil Resistance: 820ohm
  • Coil Voltage VDC Nom: 24V
  • DC Coil Power: 720mW
  • External Depth: 12.6mm
  • External Height: 20.8mm
  • External Length / Height: 20.8mm
  • External Width: 29mm
  • Nom Operating Power: 720mW
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -30°C
  • Operating Time: 15ms
  • Relay Type: Power - General Purpose
  • Release Time: 8ms
