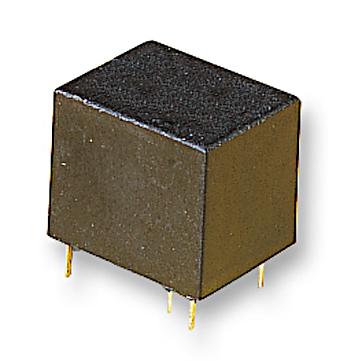

MULTICOMP PRO - HRS1KH-S DC12V - Signal Relay, 12 VDC, SPDT, 3 A, HRS1K, Through Hole
- Coil Voltage: 12VDC
- Contact Configuration: SPDT
- Contact Current: 3A
- Product Range: HRS1K Series
- Relay Mounting: Through Hole
- Coil Type: -
- Relay Terminals: Solder
- Contact Voltage VAC: 120V
- Contact Voltage VDC: 24V
- Contact Material: Silver Alloy
- Coil Resistance: 720ohm
- Coil Voltage VDC Nom: 12V
- Contact Current AC Max: 1A
- Contact Current DC Max: 1A
- Contact Current Max: 2A
- Contact Voltage AC Max: 120V
- Contact Voltage AC Nom: 120V
- Contact Voltage DC Max: 24V
- Contact Voltage DC Nom: 24V
- DC Coil Power: 200mW
- External Depth: 10.5mm
- External Height: 11.8mm
- External Length / Height: 11.8mm
- External Width: 15.5mm
- Insulation Resistance: 100Mohm
- Nom Operating Power: 200mW
- Operating Temperature Max: 55°C
- Operating Temperature Min: -25°C
- Relay Type: PCB
- Release Time: 5ms
