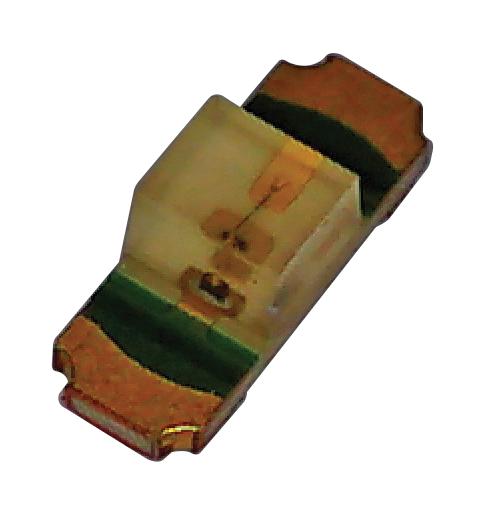

HSMF-C165. LED, SMD, BICOLOUR, GRN/Red BROADCOM

BROADCOMUGS :HSMF-C165 Code de commande:8554587

Prix:
Prix ​​promotionnel€0,88

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (29544 unité)

Documents et téléchargements

description

BROADCOM - HSMF-C165 - LED, Green, Red, SMD, 0.8mm x 1.6mm, 120 °, Rectangular, R 20mA, G 20mA

  • LED Colour: Green, Red
  • LED Mounting: SMD
  • Bulb Size: 0.8mm x 1.6mm
  • Viewing Angle: 120°
  • Lens Shape: Rectangular
  • Forward Current / Colour: R 20mA, G 20mA
  • Luminous Intensity / Colour: R 10mcd, G 15mcd
  • Forward Voltage / Colour: R 2.1V, G 2.2V
  • Wavelength / Colour: R 621nm, G 572nm
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 2A - 4 weeks
  • SVHC: No SVHC (27-Jun-2018)
  • External Depth: 0.8mm
  • External Length / Height: 0.5mm
  • External Width: 1.6mm
  • Forward Voltage VF Max: 2.6V
  • LED Type: Multicolour
  • Light Output Orientation: Top Emitting
  • No. of Pins: 4Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -30°C
  • Operating Temperature Range: -30°C to +85°C
  • Peak Wavelength: 570nm
  • Reverse Protection Voltage: 5V
  • Storage Temperature Max: 85°C
  • Storage Temperature Min: -40°C
