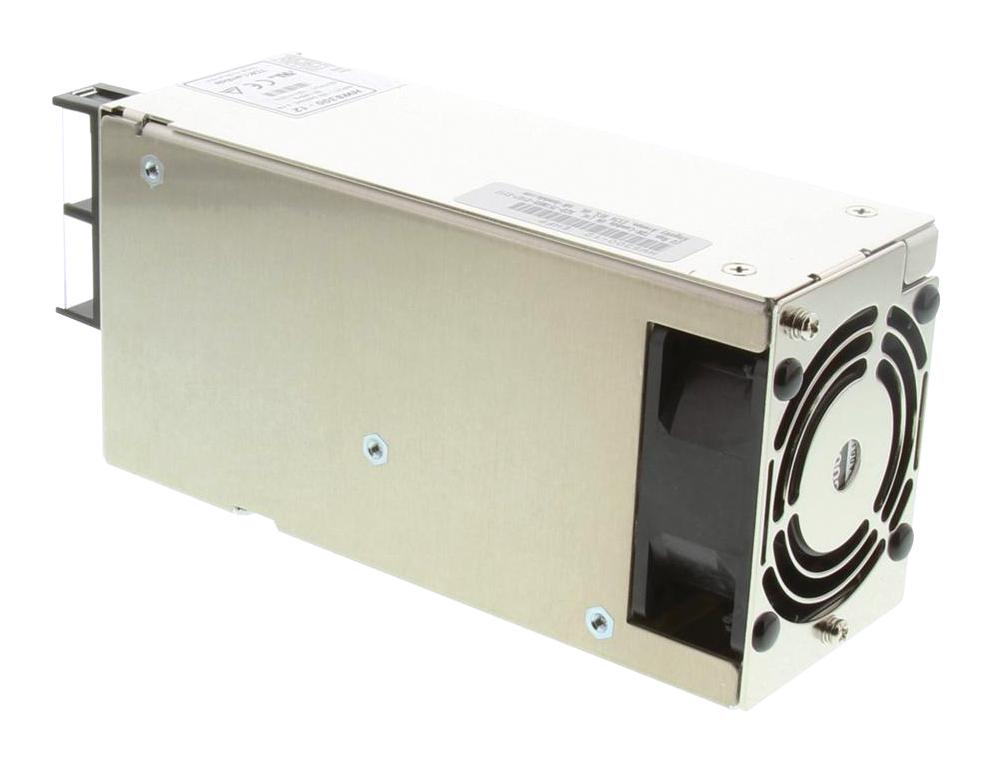

TDK-LAMBDA - HWS300-12 - AC/DC Enclosed Power Supply (PSU), ITE, 1 Outputs, 324 W, 12 V, 27 A
- No. of Outputs: 1Outputs
- Output Power Max: 324W
- Output Voltage - Output 1: 12V
- Output Current - Output 1: 27A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Input Voltage VAC: 85V AC to 265V AC
- Power Supply Output Type: Adjustable, Fixed
- Product Range: HWS Series
- SVHC: No SVHC (15-Jan-2018)
- Applications: Industrial, Lighting, Telecom
- Approval Bodies: CE, CSA, EN, UL
- Efficiency: 83%
- External Depth: 165mm
- External Length / Height: 82mm
- External Width: 61mm
- Height: 82mm
- Input Voltage AC Max: 265V
- Input Voltage AC Min: 85V
- Inrush Current: 40A
- Length: 165mm
- Line Regulation: 48mV
- Load Regulation: 72mV
- No. of Outputs: 1 Output
- Operating Temperature Max: 70°C
- Operating Temperature Min: -10°C
- Output Current Max: 27A
- Output Ripple Voltage pk-pk: 150mV
- Output Voltage Max: 14.4V
- Output Voltage Min: 9.6V
- Power Rating: 324W
- Power Supply Type: Switch Mode
- Weight: 1kg
