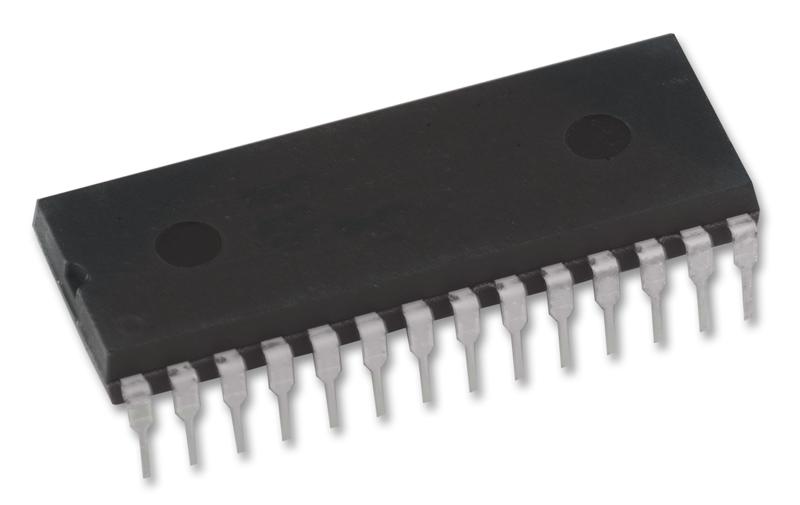

ICL7135CPIZ 4.5 Digit ADC, CMOS, 7135, DIP28 RENESAS

RENESASUGS :ICL7135CPIZ Code de commande:9663584

Prix:
Prix ​​promotionnel€11,61

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (6945 unité)

Documents et téléchargements

description

RENESAS - ICL7135CPIZ - Display Drive AD Converter, 4.5 Digits, 2 SPS, Differential, Serial, 4 V

  • Resolution (Bits): 4.5bit
  • Sampling Rate: 2SPS
  • Input Channel Type: Differential
  • Data Interface: Serial
  • Supply Voltage Type: -
  • Supply Voltage Min: 4V
  • Supply Voltage Max: 6V
  • ADC / DAC Case Style: DIP
  • No. of Pins: 28Pins
  • Operating Temperature Min: 0°C
  • Operating Temperature Max: 70°C
  • Product Range: LCD/LED Display ADCs
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (07-Jul-2017)
  • Base Number: 7135
  • Conversion Time: 333ms
  • IC Case Style: DIP
  • IC Generic Number: 7135
  • IC Temperature Range: Commercial
  • Linearity Error: 0.5%
  • Linearity Error ADC / DAC +: 1LSB
  • Linearity Error ADC / DAC -: 1LSB
  • Logic Function Number: 7135
  • No. of Bits: 4.5bit
  • No. of Channels: 1Channels
  • Operating Temperature Range: 0°C to +70°C
  • Supply Current: 1.1mA
  • Supply Voltage Range - Analogue: 4V to 6V, -3V to -8V
