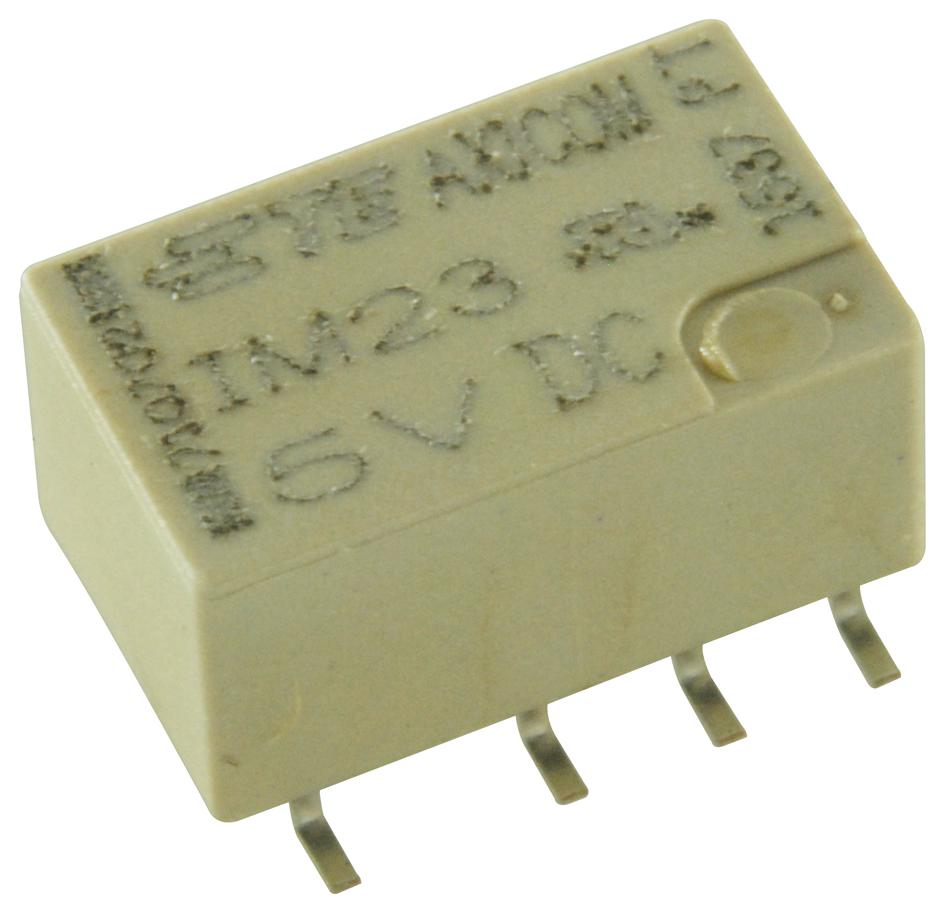

IM23GR RELAY, SIGNAL, DPDT, 250VAC, 220VDC, 2A TE CONNECTIVITY

TE CONNECTIVITYUGS :IM23GR Code de commande:1629006

Prix:
Prix ​​promotionnel€6,31

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2268 unité)

Documents et téléchargements

description

TE CONNECTIVITY - 2-1462039-9 - Signal Relay, 5 VDC, DPDT, 2 A, IM, Surface Mount, Non Latching

  • Coil Voltage: 5VDC
  • Contact Configuration: DPDT
  • Contact Current: 2A
  • Product Range: IM Series
  • Relay Mounting: SMD
  • Coil Type: Non Latching
  • Relay Terminals: Solder
  • Contact Voltage VAC: 250V
  • Contact Voltage VDC: 220V
  • Contact Material: Palladium Ruthenium
  • Coil Resistance: 500ohm
  • Coil Power Continuous: 50mW
  • Coil Voltage VDC Nom: 5V
  • Contact Current Max: 2A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 220V
  • External Depth: 10mm
  • External Height: 5.65mm
  • External Width: 6mm
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
