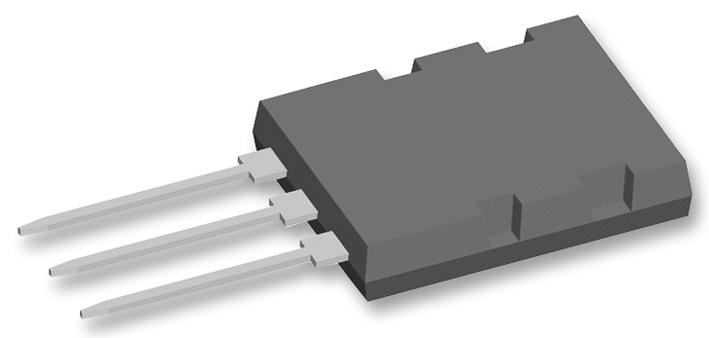

IXYS SEMICONDUCTOR - IXFL100N50P - Power MOSFET, N Channel, 500 V, 70 A, 0.052 ohm, ISOPLUS-264, Through Hole
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 70A
- Drain Source Voltage Vds: 500V
- On Resistance Rds(on): 0.052ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 5V
- Power Dissipation Pd: 625W
- Transistor Case Style: ISOPLUS-264
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (12-Jan-2017)
- Capacitance Ciss Typ: 20000pF
- Current Id Max: 70A
- Isolation Voltage: 2.5kV
- N-channel Gate Charge: 240nC
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Reverse Recovery Time trr Max: 200ns
- Rth: 0.2
- Termination Type: Through Hole
- Voltage Vds Typ: 500V
- Voltage Vgs Max: 5V
- Voltage Vgs Rds on Measurement: 10V
