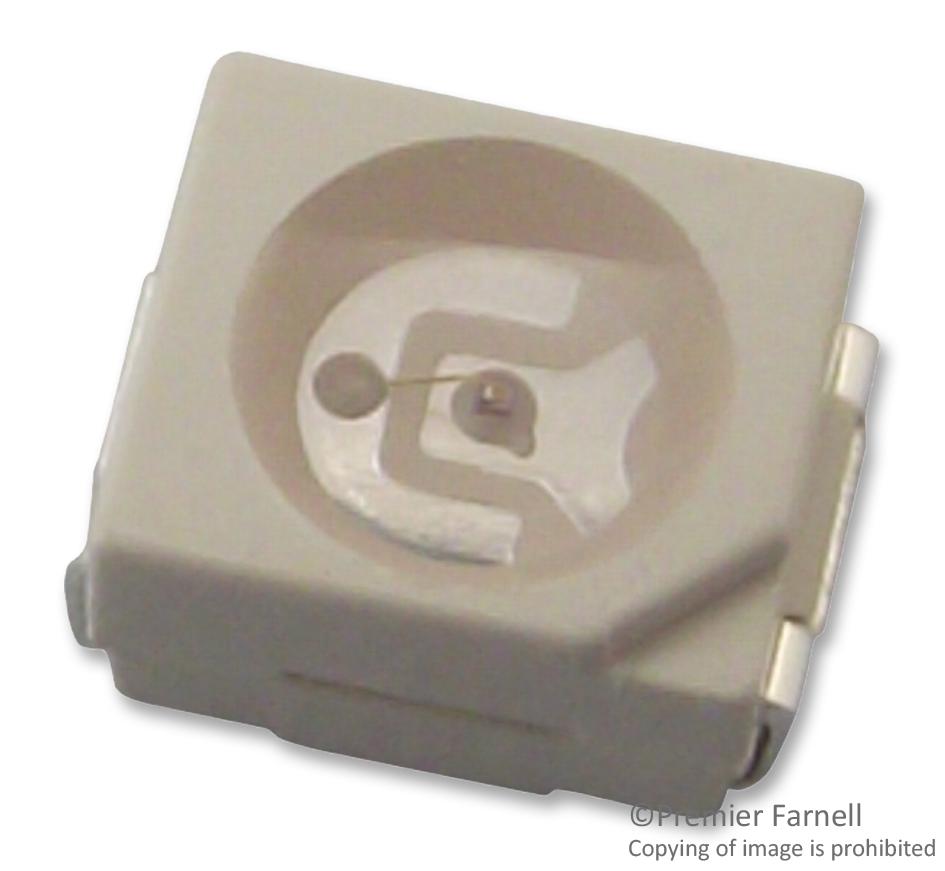

KINGBRIGHT - KA-3528SYC - LED, Yellow, SMD, 3.5mm x 2.8mm, 20 mA, 2 V, 588 nm
- LED Colour: Yellow
- LED Mounting: SMD
- LED Case Size: 3.5mm x 2.8mm
- Forward Current If: 20mA
- Forward Voltage: 2V
- Wavelength Typ: 588nm
- Luminous Intensity: 590mcd
- Viewing Angle: 120°
- Lens Shape: Round
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 4 - 72 hours
- SVHC: No SVHC (15-Jan-2019)
- Bulb Size: 2.2mm
- Dominant Wavelength: 588nm
- External Depth: 2.8mm
- External Length / Height: 1.9mm
- External Width: 3.5mm
- Forward Current If Max: 20mA
- Forward Voltage VF Max: 2.5V
- LED / Lamp Size: 2.4mm
- LED Type: Standard
- Lens Colour: Water clear
- Luminous Intensity @ If Min: 40mcd
- Luminous Intensity Typ: 120mcd
- Material: InGaAIP
- No. of Pins: 2Pins
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- PIV Max: 5V
- Peak Wavelength: 590nm
- Reverse Leakage Current Max: 10µA
- Storage Temperature Max: 85°C
- Storage Temperature Min: -40°C
- Voltage Vf Typ: 2V
