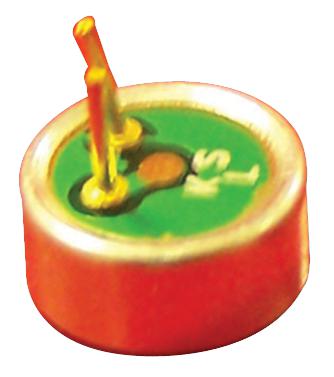

KECG2742PBL-A Microphone, Electret, Condenser KINGSTATE

KINGSTATEUGS :KECG2742PBL-A Code de commande:1502742

Prix:
Prix ​​promotionnel€3,24

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (4952 unité)

Documents et téléchargements

description

KINGSTATE - KECG2742PBL-A - Microphone, Electret Condenser, Omnidirectional, 20 Hz to 20 kHz, 10 V, -42 dB

  • Transducer Function: Microphone
  • Directivity: Omnidirectional
  • Frequency Response Min: 20Hz
  • Frequency Response Max: 20kHz
  • Supply Voltage Min: -
  • Supply Voltage Max: 10V
  • Sensitivity (dB): -42dB
  • Drain Current Max: -
  • Output Impedance: 2.2kohm
  • Product Range: KECG2742 Series
  • SVHC: No SVHC (20-Jun-2016)
  • Current Consumption: 0.5mA
  • Device Type: Electret Condenser Microphone
  • External Depth: 6mm
  • External Diameter: 6mm
  • External Height: 2.7mm
  • External Length / Height: 2.7mm
  • External Width: 2.7mm
  • Impedance: 2.2kohm
  • Input Voltage: 2V
  • Lead Spacing: 1.9mm
  • Material: AL
  • Operating Frequency Max: 20kHz
  • Operating Frequency Min: 20Hz
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -20°C
  • Pin Length: 2.8mm
  • Weight: 0.17g
