KP-3216SURCK LED, 1206, Red KINGBRIGHT

KINGBRIGHTUGS :KP-3216SURCK Code de commande:2290335

Prix:
Prix ​​promotionnel€0,31

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (13869 unité)

Documents et téléchargements

description

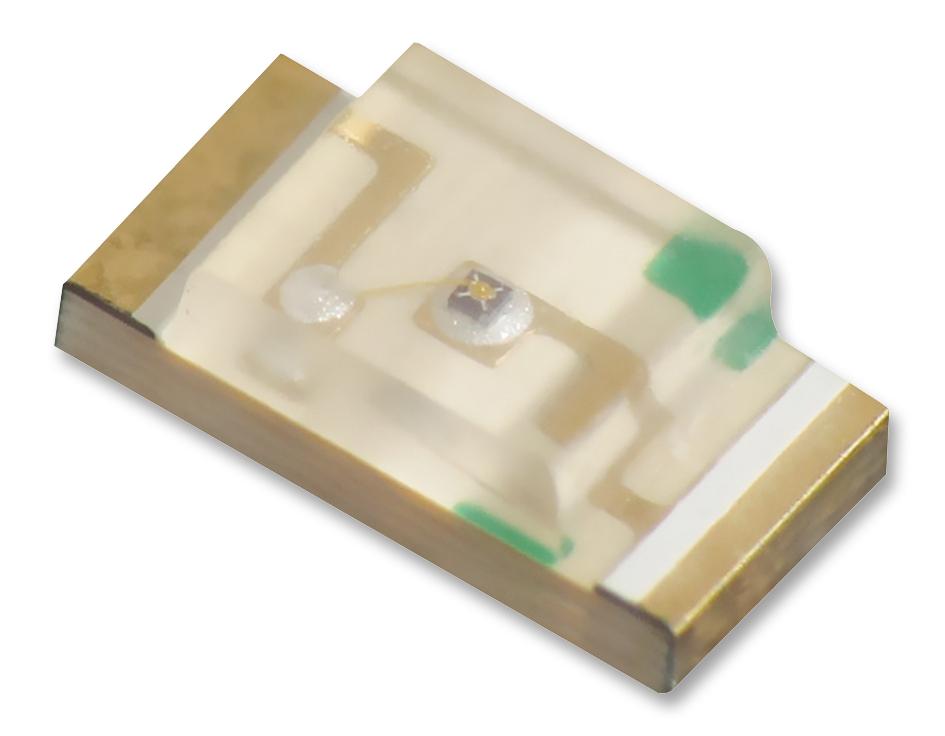

KINGBRIGHT - KP-3216SURCK - LED, Low Power, Red, SMD, 1206 (3216 Metric), 20 mA, 1.95 V, 630 nm

  • LED Colour: Red
  • LED Mounting: SMD
  • LED Case Size: 1206 (3216 Metric)
  • Forward Current If: 20mA
  • Forward Voltage: 1.95V
  • Wavelength Typ: 630nm
  • Luminous Intensity: 80mcd
  • Viewing Angle: 120°
  • Lens Shape: Rectangular
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 3 - 168 hours
  • SVHC: No SVHC (15-Jan-2019)
  • Current If Luminous Intensity: 20mA
  • External Depth: 1.6mm
  • External Length / Height: 1.1mm
  • External Width: 3.2mm
  • Forward Current If Max: 20mA
  • Forward Voltage VF Max: 2.5V
  • Lens Colour: Water Clear
  • Luminous Intensity Typ: 150mcd
  • Material: InGaAlP
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
