KPTD-3216CGCK LED, 1.6mm, Green, 300MCD, 570nm KINGBRIGHT

KINGBRIGHTUGS :KPTD-3216CGCK Code de commande:8530130

Prix:
Prix ​​promotionnel€0,49

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (15405 unité)

Documents et téléchargements

description

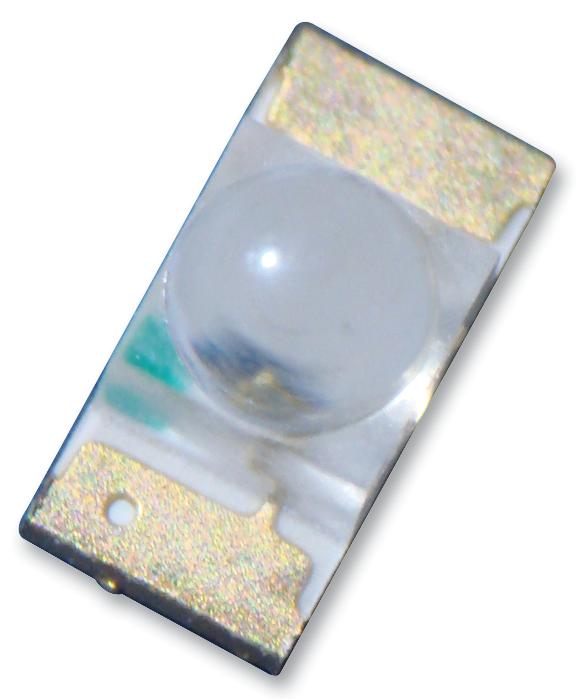

KINGBRIGHT - KPTD-3216CGCK - LED, Low Power, Green, SMD, 1206 (3216 Metric), 20 mA, 2.1 V, 570 nm

  • LED Colour: Green
  • LED Mounting: SMD
  • LED Case Size: 1206 (3216 Metric)
  • Forward Current If: 20mA
  • Forward Voltage: 2.1V
  • Wavelength Typ: 570nm
  • Luminous Intensity: 300mcd
  • Viewing Angle: 35°
  • Lens Shape: Round
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 3 - 168 hours
  • SVHC: No SVHC (15-Jan-2019)
  • External Depth: 1.6mm
  • External Length / Height: 1.8mm
  • External Width: 3.2mm
  • LED Type: Standard
  • Material: InGaAIP
  • No. of Pins: 2Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • PIV Max: 5V
  • Reverse Leakage Current Max: 10µA
  • Storage Temperature Max: 85°C
  • Storage Temperature Min: -40°C
  • Voltage Vf Typ: 2.1V
