LUMBERG - KRM 06 - Wire-To-Board Terminal Block, 5 mm, 6 Ways, 2.5 mm², Screw
- Pitch Spacing: 5mm
- No. of Positions: 6Ways
- Wire Size AWG Min: -
- Wire Size AWG Max: -
- Conductor Area CSA: 2.5mm²
- Wire Connection Method: Screw
- Rated Current: 15A
- Rated Voltage: 250V
- Block Orientation: Through Hole Right Angle
- Product Range: -
- SVHC: Lead (15-Jan-2019)
- Approval Bodies: CSA, UL
- Colour: Light Grey
- Connector Mounting: PCB Mount
- Connector Type: Terminal Block, PCB
- Contact Material: Copper
- Contact Plating: Tin Plated Contacts
- External Height: 10mm
- External Length / Height: 20mm
- External Width: 7.5mm
- Flammability Rating: UL94V-0
- Operating Temperature Max: 100°C
- Operating Temperature Min: -25°C
- Pin Diameter: 1mm
- RMS Current (Irms): 15A
- Voltage Rating VAC: 250V
- Wire Area Size Max: 2.5mm²
Frais de port prévus
Tu pourrais aussi aimer

LUMBERG

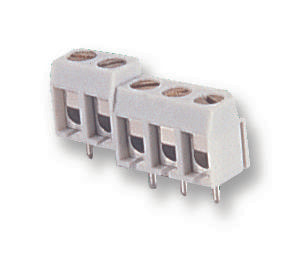

KRE 03 Terminal Block, Wire TO BRD, 3Pos Lumberg
