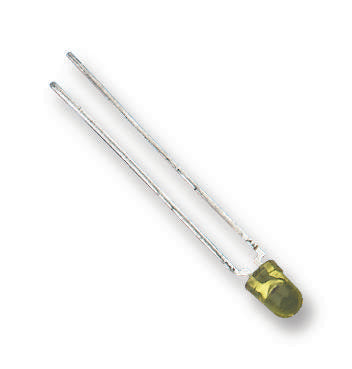

LED TECHNOLOGY - L03R3000F1 - LED, Yellow, Through Hole, T-1 (3mm), 20 mA, 2.1 V, 585 nm
- LED Colour: Yellow
- LED Mounting: Through Hole
- LED Case Size: T-1 (3mm)
- Forward Current If: 20mA
- Forward Voltage: 2.1V
- Wavelength Typ: 585nm
- Luminous Intensity: 3.1mcd
- Viewing Angle: 74°
- Lens Shape: Round
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jun-2015)
- Bulb Size: T-1 (3mm)
- Current If Luminous Intensity: 20mA
- Dominant Wavelength: 585nm
- External Diameter: 3.1mm
- External Length / Height: 5.08mm
- Forward Current If Max: 20mA
- Forward Voltage VF Max: 2.1V
- LED / Lamp Size: 3mm / T-1
- LED Type: Standard
- Lead Cross-section Depth: 0.5mm
- Lead Cross-section Width: 0.5mm
- Lead Length: 12.7mm
- Lead Spacing: 2.29mm
- Luminous Intensity Typ: 6mcd
- No. of Pins: 2Pins
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
- Operating Temperature Range: -25°C to +85°C
- PIV Max: 5V
- Peak Forward Current: 25mA
- Peak Wavelength: 585nm
- Voltage Vf Typ: 2.1V
