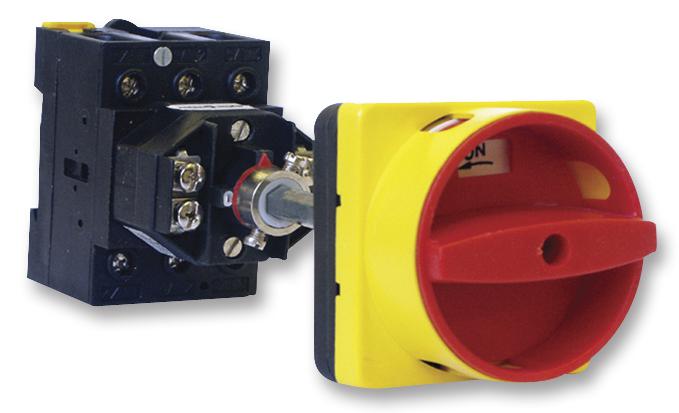

MULTICOMP PRO - LBDI1253P - Switch Disconnector, Interlock, 3 Pole, 690 V, 125 A, IP65, Screw
- No. of Poles: 3 Pole
- Contact Voltage AC Max: 690V
- Contact Current AC Max: 125A
- Approvals / Standards: CSA, EN, IEC, UL
- IP Rating: IP65
- Product Range: -
- SVHC: No SVHC (07-Jul-2017)
- Bezel Height: 64mm
- Bezel Width: 64mm
- Current Rating: 25A
- External Depth: 77.5mm
- External Length / Height: 104mm
- External Width: 50mm
- Length: 280mm
- Operating Current: 125A
- Power Rating: 11kW
- Proof Voltage: 6kV
- Shaft Diameter: 8mm
- Switching AC3 Power Max: 45kW
- Voltage Rating: 690V
