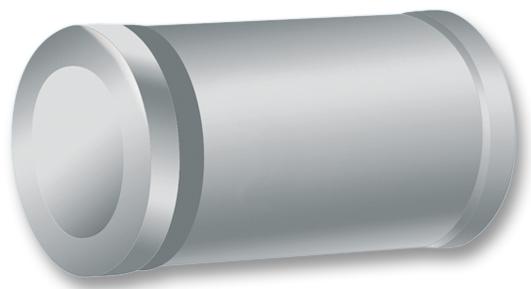

LL4148-GS08 Diode, Small Signal, 100V, MiniMELF Vishay

VISHAYUGS :LL4148-GS08 Code de commande:2409162

Prix:
Prix ​​promotionnel€0,03

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (37500 unité)

Documents et téléchargements

description

VISHAY - LL4148-GS08 - Small Signal Diode, Single, 100 V, 150 mA, 1 V, 8 ns, 2 A

  • Diode Configuration: Single
  • Repetitive Reverse Voltage Vrrm Max: 100V
  • Forward Current If(AV): 150mA
  • Forward Voltage VF Max: 1V
  • Reverse Recovery Time trr Max: 8ns
  • Forward Surge Current Ifsm Max: 2A
  • Operating Temperature Max: 175°C
  • Diode Case Style: SOD-80 (MiniMELF)
  • No. of Pins: 2Pins
  • Product Range: LL414 Series
  • Automotive Qualification Standard: -
  • Current Ifrm: 450µA
  • Current Ifsm: 2A
  • External Diameter: 1.5mm
  • External Length / Height: 3.7mm
  • Junction Temperature Tj Max: 175°C
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +175°C
  • Peak Forward Current: 200mA
  • Power Dissipation Ptot Max: 500mW
  • Reel Quantity: 2500
  • Reverse Recovery Time trr Typ: 8ns
  • Reverse Voltage Vr Max: 75V
  • SMD Marking: CATHODE BAND
  • Tape Width: 8mm
  • Termination Type: Surface Mount Device
