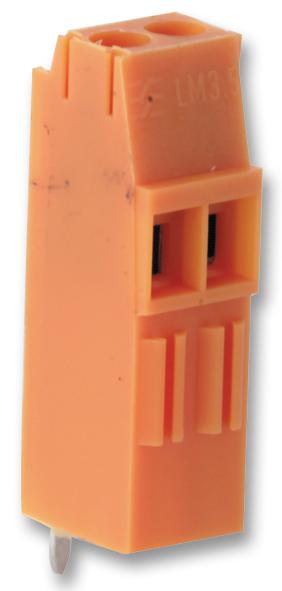

WEIDMULLER - LM1N 3.5/2 3.2 - Wire-To-Board Terminal Block, 3.5 mm, 28 AWG, 14 AWG
- Pitch Spacing: 3.5mm
- No. of Positions: -
- Wire Size AWG Min: 28AWG
- Wire Size AWG Max: 14AWG
- Conductor Area CSA: -
- Wire Connection Method: -
- Rated Current: 10A
- Rated Voltage: 300V
- Block Orientation: -
- SVHC: No SVHC (15-Jan-2018)
- Connector Mounting: PCB Mount
- Connector Type: Terminal Block, PCB
- Contact Material: Copper
- Contact Plating: Tin Plated Contacts
- External Length / Height: 25.2mm
- Flammability Rating: UL94V-2
- Material: PA66
- Voltage Rating VAC: 300V
- Wire Area Size Max: 2.5mm²
