LM5106MM/NOPB Driver, MOSFET, Half Bridge, SMD Texas Instruments

TEXAS INSTRUMENTSUGS :LM5106MM/NOPB Code de commande:3005769

Prix:
Prix ​​promotionnel€4,06

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (3990 unité)

description

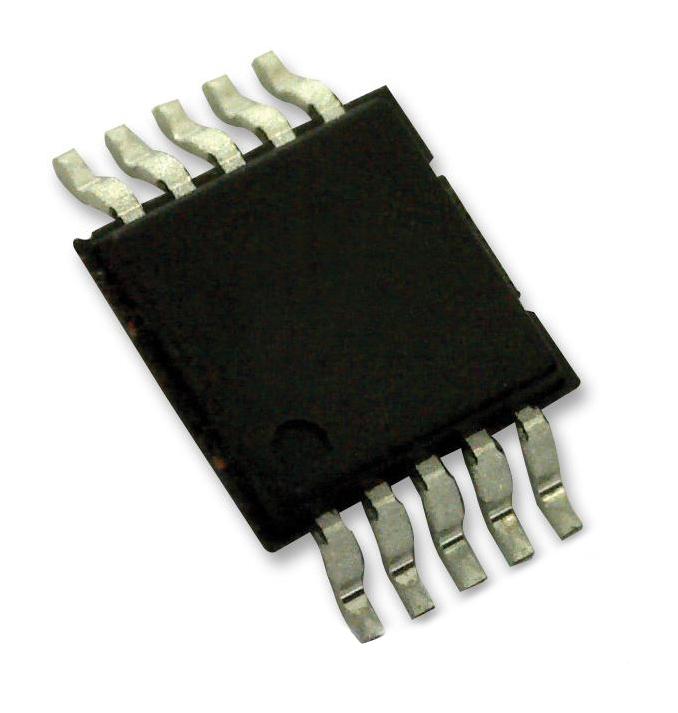

TEXAS INSTRUMENTS - LM5106MM/NOPB - Dual Half Bridge Driver, 8V-14V Supply, 1.8A Out, 32ns Delay, VSSOP-10

  • Driver Configuration: Half Bridge
  • Peak Output Current: 1.8A
  • Supply Voltage Min: 8V
  • Supply Voltage Max: 14V
  • Driver Case Style: VSSOP
  • No. of Pins: 10Pins
  • Input Delay: 115ns
  • Output Delay: 32ns
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 125°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (15-Jan-2019)
  • Base Number: 5106
  • Device Type: Half Bridge
  • I / O Delay: 570ns
  • Module Configuration: Half Bridge
  • No. of Outputs: 2Outputs
  • Operating Temperature Range: -40°C to +125°C
  • Output Current: 1.2A
  • Output Sink Current Min: 1.8mA
  • Output Source Current Min: 1.2mA
  • Output Voltage: 18.3V
  • Output Voltage Max: 100V
  • Supply Voltage Range: 8V to 14V
  • Termination Type: Surface Mount Device
