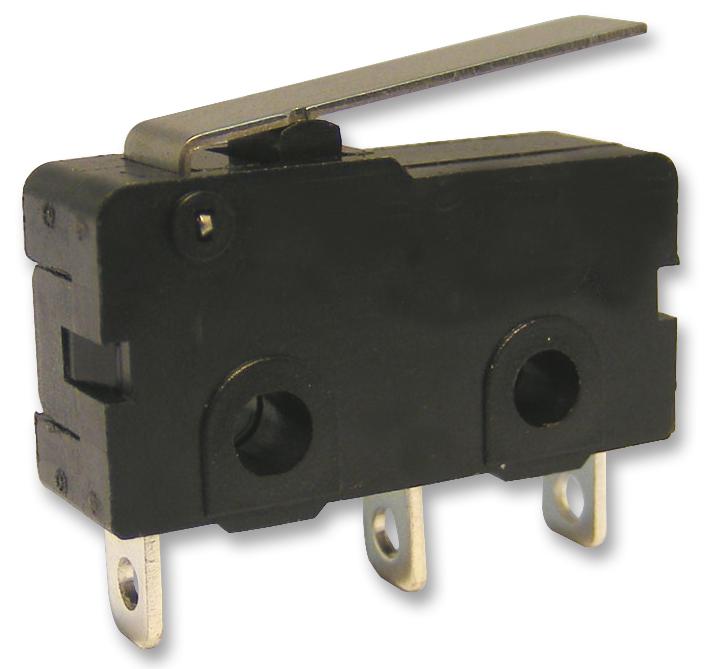

MULTICOMP PRO - M140T01-AE0501A - Microswitch, Snap Action, Short Lever, SPDT, Solder, 5 A
- Microswitch Type: Snap Action
- Microswitch Actuator: Short Lever
- Contact Configuration: SPDT
- Switch Terminals: Solder
- Contact Current Max: 5A
- Contact Voltage DC Nom: -
- Product Range: M140T01 Series
- Contact Voltage AC Nom: 250VAC
- Operating Force Max: 60gf
- SVHC: No SVHC (07-Jul-2017)
- Actuation Type: Short Lever
- Actuator Type: Short Lever
- Contact Current @ Contact Voltage AC Max: 5A
- Contact Current @ Contact Voltage AC Min: 3A
- Contact Current AC Max: 5A
- Contact Resistance: 50mohm
- Contact Voltage AC Max: 250V
- Contact Voltage AC Min: 125V
- External Depth: 6.4mm
- External Width: 19.8mm
- Height: 10.6mm
- Insulation Resistance: 100Mohm
- No. of Mechanical Operations: 100000
- Operating Force: 0.59N
- Operating Temperature Max: 80°C
- Operating Temperature Min: -20°C
- Pre-travel: 3.6mm
- Switch Case: PBT (Polybutylene Terephthalate)
- Switch Operation: Off-On
