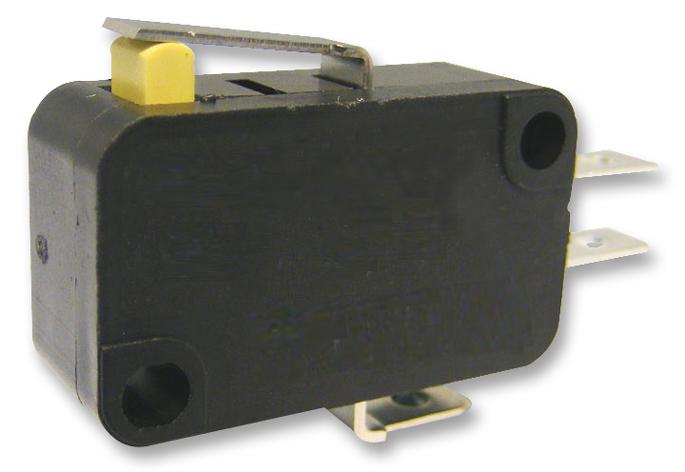

M141T02-AC0304D Microswitch, SPDT, 10A, Short Lever multicomp Pro

MULTICOMP PROUGS :M141T02-AC0304D Code de commande:1735357

Prix:
Prix ​​promotionnel€2,33

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (5299 unité)

Documents et téléchargements

description

MULTICOMP PRO - M141T02-AC0304D - Microswitch, Snap Action, Short Lever, SPDT, Quick Connect, Solder, 10 A

  • Microswitch Type: Snap Action
  • Microswitch Actuator: Short Lever
  • Contact Configuration: SPDT
  • Switch Terminals: Quick Connect, Solder
  • Contact Current Max: 10A
  • Contact Voltage DC Nom: -
  • Product Range: M141T01 Series
  • Contact Voltage AC Nom: 250VAC
  • Operating Force Max: 201gf
  • SVHC: No SVHC (07-Jul-2017)
  • Actuation Type: Short Lever
  • Actuator Type: Short Lever
  • Contact Current @ Contact Voltage AC Max: 10A
  • Contact Current @ Contact Voltage AC Min: 10A
  • Contact Current AC Max: 10A
  • Contact Resistance: 100mohm
  • Contact Voltage AC Max: 250V
  • Contact Voltage AC Min: 125V
  • External Depth: 9.7mm
  • External Width: 27.8mm
  • Height: 15.8mm
  • Insulation Resistance: 100Mohm
  • No. of Mechanical Operations: 1000000
  • Operating Force: 1.97N
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -20°C
  • Pre-travel: 1.6mm
  • Switch Case: PBT (Polybutylene Terephthalate)
  • Switch Operation: Off-On
