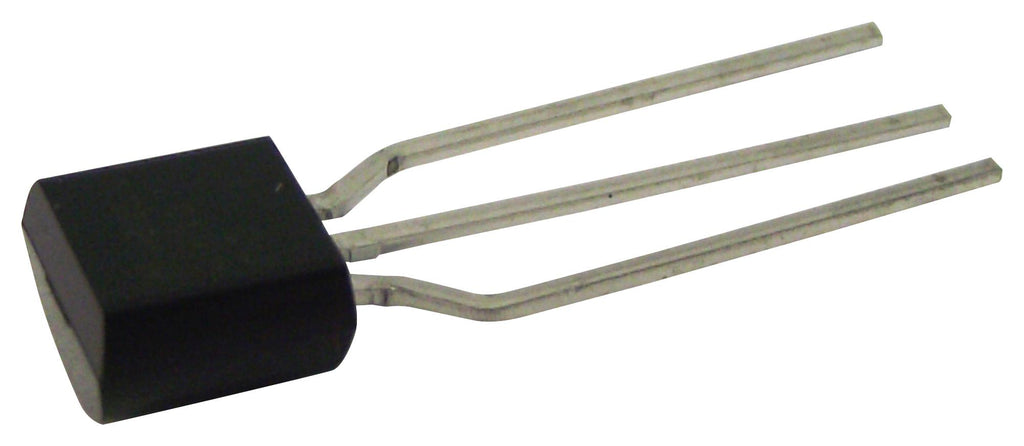

WEEN SEMICONDUCTORS - MAC97A6,116 - Triac, 400 V, 600 mA, TO-92, 1.5 V, 8 A, 10 mA
- Peak Repetitive Off-State Voltage, Vdrm: 400V
- On State RMS Current IT(rms): 600mA
- Triac Case Style: TO-92
- Gate Trigger Current Max (QI), Igt: 7mA
- Gate Trigger Voltage Max Vgt: 1.5V
- Peak Gate Power: 5W
- Peak Non Rep Surge Current Itsm 50Hz: 8A
- Holding Current Max Ih: 10mA
- No. of Pins: 3Pins
- Operating Temperature Max: 125°C
- Product Range: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
