Mas 8100 S Plug, DIN, Free, 8Pin Hirschmann

HIRSCHMANNUGS :MAS 8100 S Code de commande:496959

Prix:
Prix ​​promotionnel€8,94

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (514 unité)

Documents et téléchargements

description

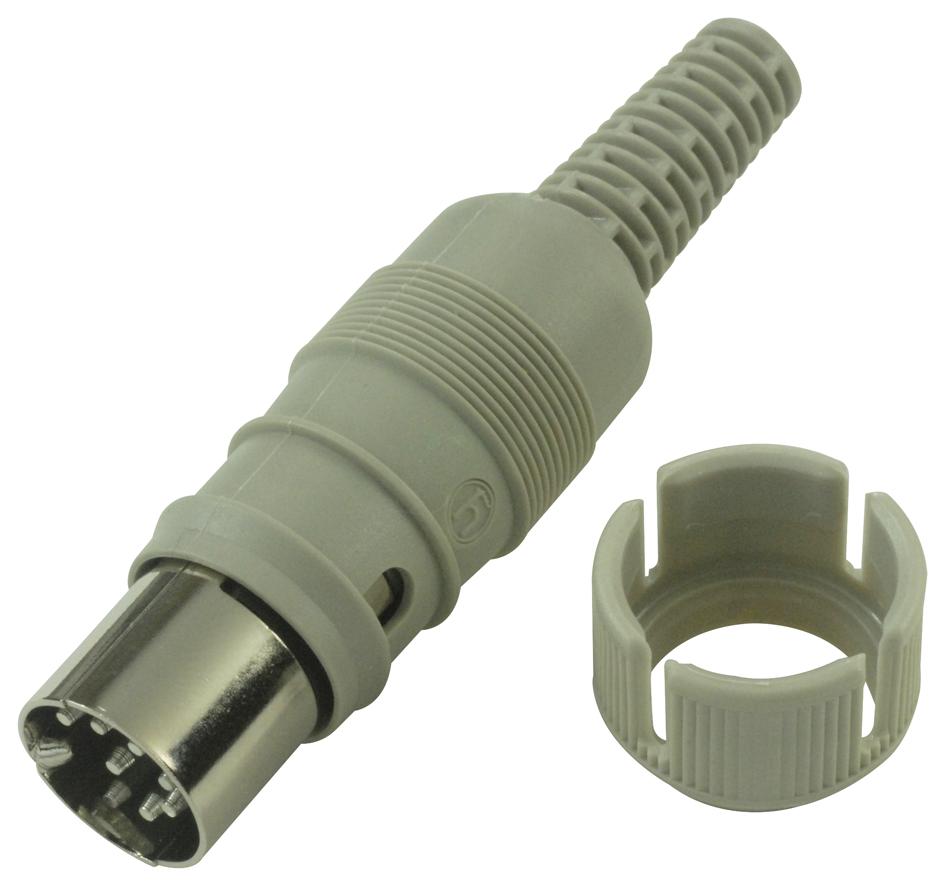

HIRSCHMANN - MAS 8100 S - DIN Audio / Video Connector, 8 Contacts, Plug, Cable Mount, Solder, Tin Plated Contacts

  • No. of Contacts: 8Contacts
  • Gender: Plug
  • Connector Mounting: Cable Mount
  • Contact Termination: Solder
  • Contact Plating: Tin Plated Contacts
  • Connector Body Material: Plastic Body
  • Product Range: -
  • SVHC: Lead (27-Jun-2018)
  • Cable Diameter Max: 5.5mm
  • Colour: Grey
  • Connector Colour: Grey
  • Connector Type: DIN Audio
  • Contact Resistance: 10mohm
  • DC Current Max: 4A
  • External Length / Height: 65mm
  • Flammability Rating: UL94V-2
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -20°C
  • Voltage Rating V DC: 34V
  • Voltage Rating VAC: 24V
  • Wire Area Size Max: 0.34mm²
