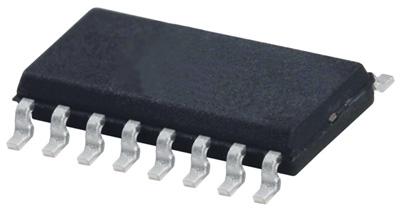

MAXIM INTEGRATED / ANALOG DEVICES - MAX532ACWE+ - Digital to Analogue Converter, 12 bit, 3 Wire, Serial, ± 11.4V to ± 16.5V, SOIC, 16 Pins
- Resolution (Bits): 12bit
- Sampling Rate: -
- Data Interface: 3 Wire, Serial
- Supply Voltage Range: ± 11.4V to ± 16.5V
- ADC / DAC Case Style: SOIC
- No. of Pins: 16Pins
- Input Channel Type: Serial
- Operating Temperature Min: 0°C
- Operating Temperature Max: 70°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
- A/D / D/A Features: Multiplying, Serial O/P, Voltage O/P
- Base Number: 532
- Conversion Time: 2.5µs
- IC Temperature Range: Commercial
- Linearity Error: 0.5%
- Linearity Error ADC / DAC +: 0.5LSB
- Linearity Error ADC / DAC -: 0.5LSB
- Logic Function Number: 532
- No. of Bits: 12bit
- No. of Channels: 2Channels
- Operating Temperature Range: 0°C to +70°C
- Output Type: Voltage
- Power Dissipation Ptot Max: 762mW
- Settling Time: 2.5µs
- Supply Current: 5mA
- Supply Voltage Max: 16.5V
- Supply Voltage Min: 11.4V
