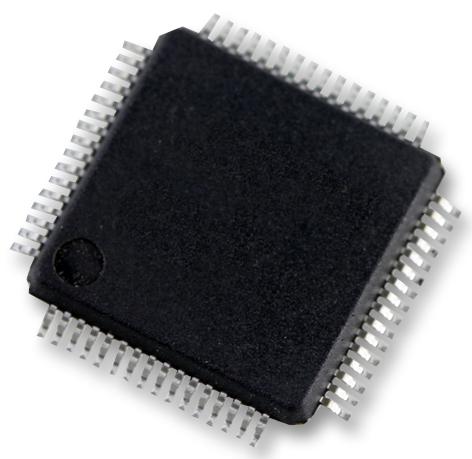

NXP - MC9S08LL16CLH - MCU-Application Specific 8 bit, HCS08, 20 MHz, 2 KB RAM/16 KB Program, 1.8 V to 3.6 V in, LQFP-64
- Product Range: S08 Family S08LL Series Microcontrollers
- Architecture: S08
- MCU Core Size: 8bit
- Program Memory Size: 16KB
- RAM Memory Size: 2KB
- CPU Speed: 20MHz
- No. of I/O's: 38I/O's
- MCU Case Style: LQFP
- No. of Pins: 64Pins
- Embedded Interface Type: I2C, SCI, SPI
- MCU Applications: Battery Management
- Supply Voltage Min: 1.8V
- Supply Voltage Max: 3.6V
- MCU Family: S08
- MCU Series: S08LL
- Automotive Qualification Standard: -
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
- Controller Family/Series: HCS08
- Flash Memory Size: 16KB
- MPU Core Size: 8bit
- No. of ADC Inputs: 8
- No. of PWM Channels: 4
- No. of Timers: 2
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External
- Peripherals: ADC, Comparator, LCD Driver, PWM, Timer
- Program Memory Size: 16KB
- Supply Voltage Range: 1.8V to 3.6V
- Termination Type: Surface Mount Device
